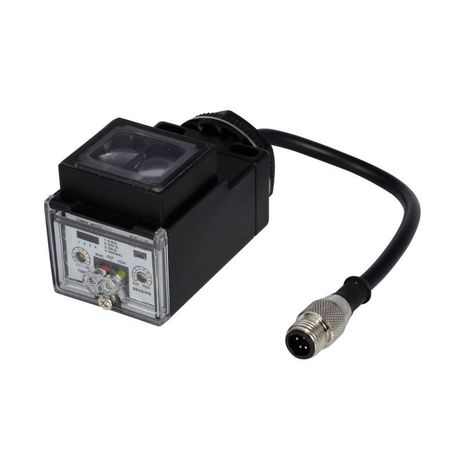

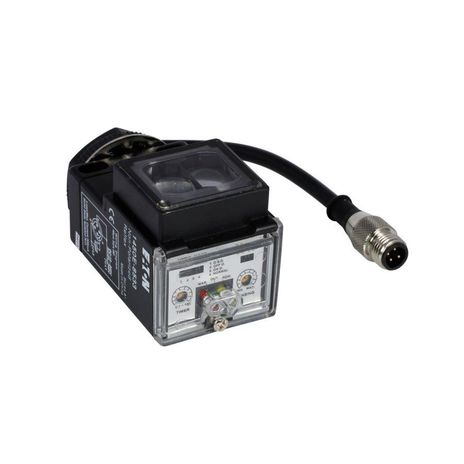

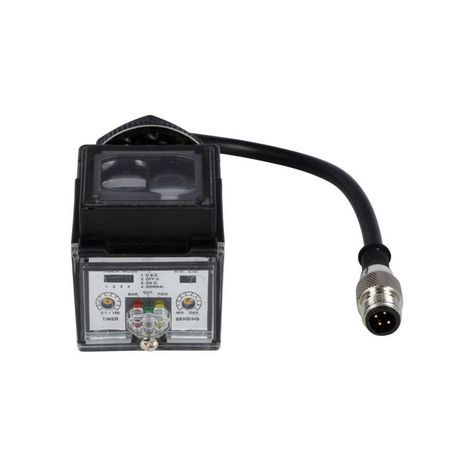

Eaton 1450E-8533
SKU: CS5019165MPN: 1450E-8533UPC/EAN: 782116111206
Eaton Enhanced 50 photoelectric sensor
$567.31
UnitAvailable on backorder
Product Details
Eaton Photoelectric Sensor, Retroreflective, Forward Viewing, Output (green), power (yellow), alignment (red), Dual key micro (pigtail), 300 mA at 240 Vac/dc, 4 pin, Time delayed, SPNO SSR, 24-240 Vac, 12-240 Vdc
Attributes
| Connection | Dual key micro (pigtail) |
| Contact Configuration | SPNO SSR |
| Contact Rating | 300 mA at 240 Vac/dc |
| Enclosure Material | Fiberglass reinforced plastic |
| Environmental Rating | IP67, IP69K |
| Input Voltage | 24-240 Vac, 12-240 Vdc |
| Led Indicator | Power: yellow Output: green Alignment: red |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Number Of Pins | 4.0000 |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Output short circuit, overcircuit and reverse polarity |
| Sensor Type | Retroreflective |
| Time Delay | Time delayed |
Specifications
| SKU | CS5019165 |
|---|---|
| MPN | 1450E-8533 |
| UPC/EAN | 782116111206 |
You may also like

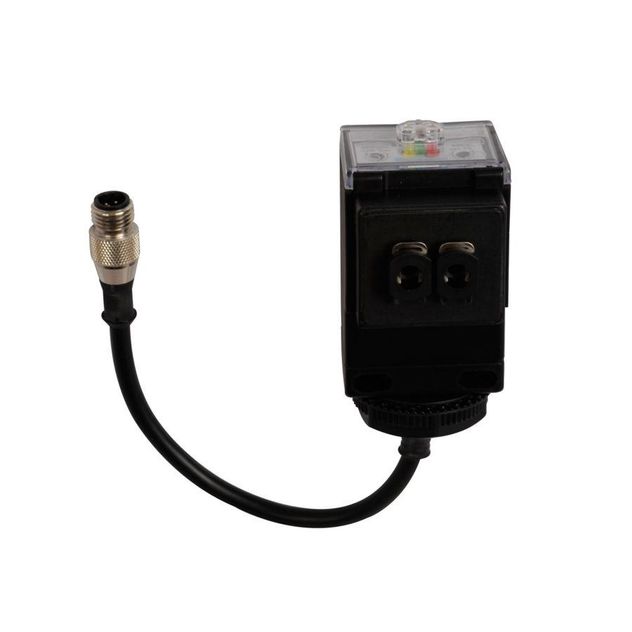

Eaton 1550E-8533
