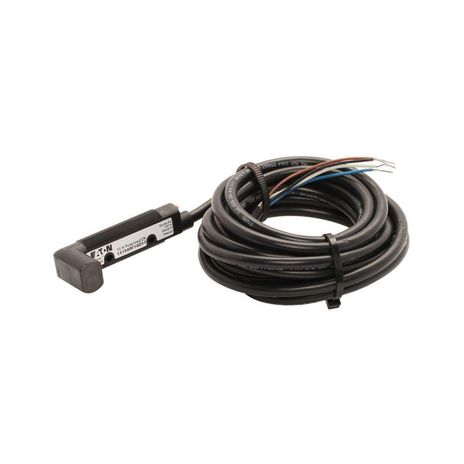

Eaton 14156RF10D17B1
SKU: CS5019119MPN: 14156RF10D17B1UPC/EAN: 782114180884
Eaton OEM Prism 18mm tubular photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton OEM Prism 18mm tubular photoelectric sensor, Polarized Retroreflective, Right Angle, Output ON, 10 ft cable, 6.6 ft, 100 mA PNP, 250 mA NPN at 10-30 Vdc, PVC, NPN and PNP open collector, 10-30 Vdc
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 10 ft cable |
| Contact Configuration | NPN and PNP open collector |
| Contact Rating | 100 mA PNP, 250 mA NPN at 10-30 Vdc |
| Enclosure Material | Polyurethane foam (RIM) |
| Environmental Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13 |
| Input Voltage | 10-30 Vdc |
| Led Indicator | Output ON |
| Maximum Dc Current | 100 mA PNP, 250 mA NPN |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Protected for loads < 32 Vac or 2 Vdc |
| Sensor Type | Polarized retroreflective |
Specifications
| SKU | CS5019119 |
|---|---|
| MPN | 14156RF10D17B1 |
| UPC/EAN | 782114180884 |
You may also like

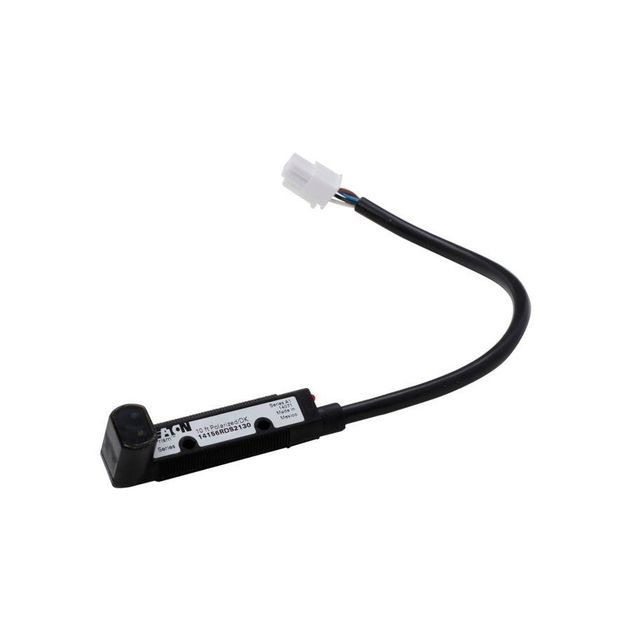

Eaton 14156RDS2130
