Eaton 1351E-6504

Name: Eaton 1351E-6504
Brand: Eaton
SKU: CS5018944
Price: 412.42 USD
Availability: OutOfStock

SKU: CS5018944MPN: 1351E-6504UPC/EAN: 782116111770

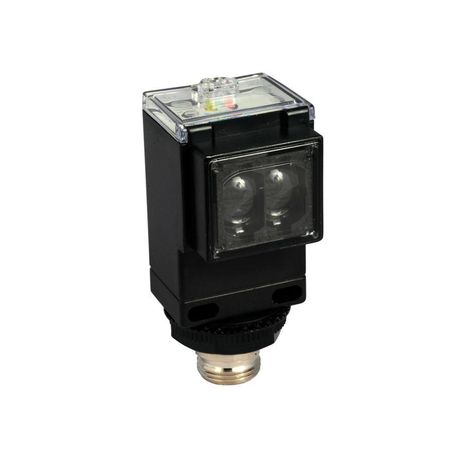

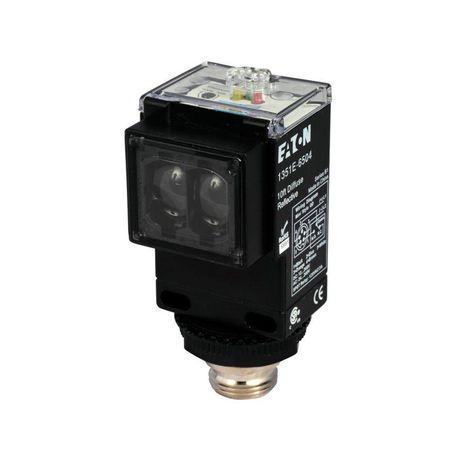

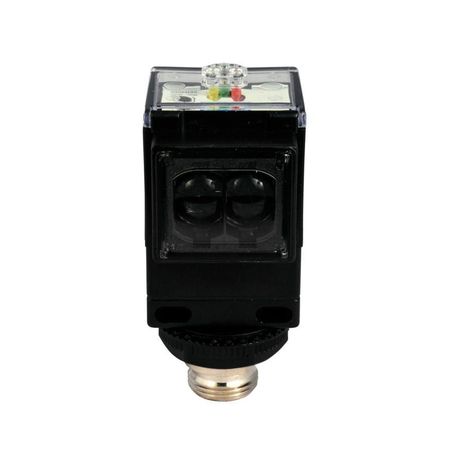

Eaton Enhanced 50 photoelectric sensor

$412.42

Unit

Available on backorder

Quantity

remove

add

Product Details

Eaton Enhanced 50 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 10 Ft., 3A max AC, SPDT Form C Relay, 3A at 240 Vac, 5 Pin Mini Connector, 12–240 Vdc 24–240 Vac input, Diffuse Reflective

Attributes

Connection	5-pin mini connector
Contact Configuration	SPDT form C relay
Contact Rating	3A at 240 Vac
Enclosure Material	Fiberglass reinforced plastic
Environmental Rating	IP67, IP69K
Input Voltage	12-240 Vdc, 24-240 Vac
Led Indicator	Output status: green Marginal gain: red Power on: yellow
Maximum Ac Current	3 A
Operating Mode	Diffuse reflective
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Diffuse reflective
Switch Type	Photoelectric
