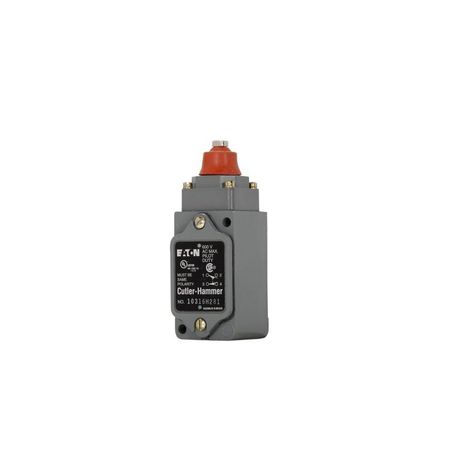

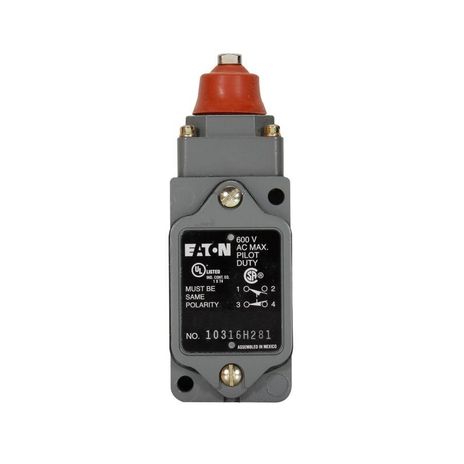

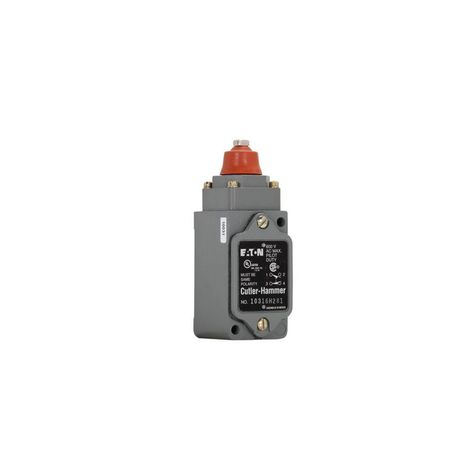

Eaton 10316H281
SKU: CS5018194MPN: 10316H281UPC/EAN: 782113204710
Eaton 10316 hazardous location limit switch
Contact us for pricing and availability
Product Details
Eaton 10316 hazardous location limit switch, Non Plug-in Style Assembled Limit Switch, Top Pushbutton, Die Cast Zinc enclosure, 10A max AC, 0.22A max DC, 1NO-1NC, 10A at 600Vac, 0.22A at 125Vdc, Screw Terminals
Attributes
| Connection | Screw terminal |
| Contact Configuration | 1 NO-1 NC |
| Contact Rating | 10A at 600Vac, 0.22A at 125Vdc |
| Enclosure Material | Die cast zinc |
| Environmental Rating | NEMA 1, NEMA 4, NEMA 13 |
| Maximum Ac Current | 10 A |
| Maximum Dc Current | 0.22 A |
| Operating Temperature Max | 200 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -20 FAH |
| Operating Temperature Min Uom | FAH |
| Switch Type | Top pushbutton |
Specifications
| SKU | CS5018194 |
|---|---|
| MPN | 10316H281 |
| UPC/EAN | 782113204710 |
