Eaton 1009265CH
SKU: CS5014288MPN: 1009265CHUPC/EAN: 782116940165
Eaton metered pedestal
$750.25
UnitAvailable on backorder
Product Details
Eaton Metered Pedestal , 200A sockets, Solid top, Underground feed, Four-jaws, #4/0 compression line, #6-250 kcmil load, #2/0 compression neutral, Ringless, 600V, Horn bypass
Attributes
| Amperage Rating | 200A |
| Bypass | Horn |
| Feed Type | Bottom |
| Hub Type | Solid top |
| Line | 4/0 Compression (Line) 2/0 Compression (Neutral) |
| Neutral | #2/0 compression |
| Number Of Jaws | Four-jaw |
| Prod Load | #6-350 kcmil |
| Security | Ringless |
| Type | (2) 200A sockets |
| Utility Approvals | IL : Commonwealth Edison (ComEd) / CECHA |
| Voltage Rating | 600 V |
| Voltage Rating Uom | AMP |
Specifications
| SKU | CS5014288 |
|---|---|
| MPN | 1009265CH |
| UPC/EAN | 782116940165 |
You may also like

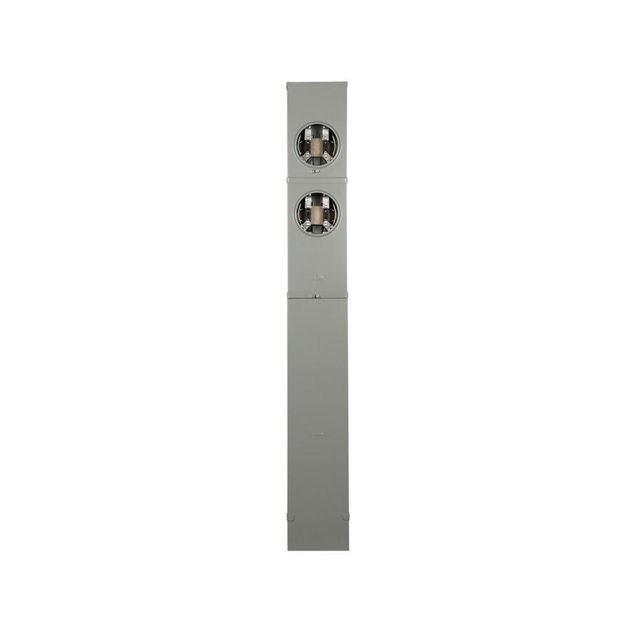

Eaton 1009264CH
$690.44Unit
Eaton 1009085CH
$496.38Unit
Eaton 1006388CH
Discontinued - Contact Us For Pricing & Availability

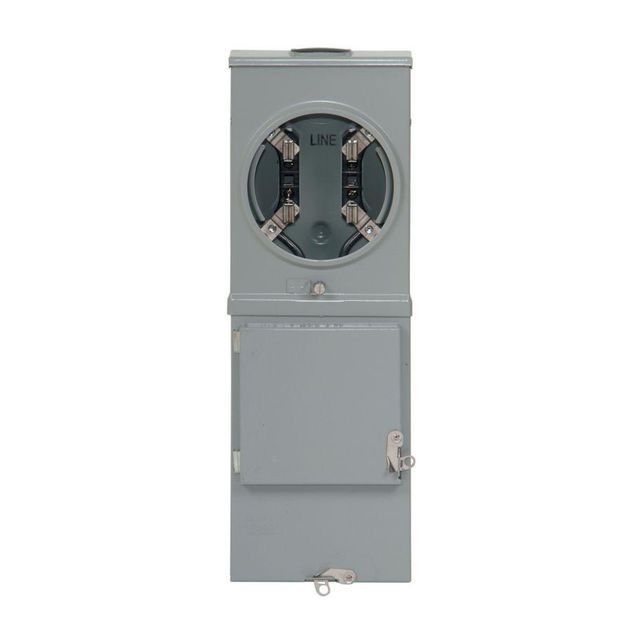

Eaton 1009079CH
$316.94Unit
Eaton 1009078CH
$1,049.29Unit

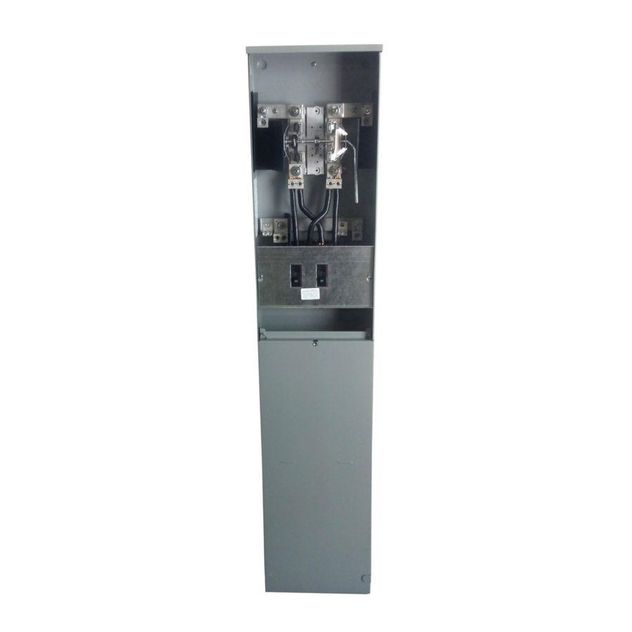

Eaton 1009017CH
$1,526.14Unit
Eaton 1009845ECH
$624.13Unit
Eaton 1008959CH
$779.96Unit

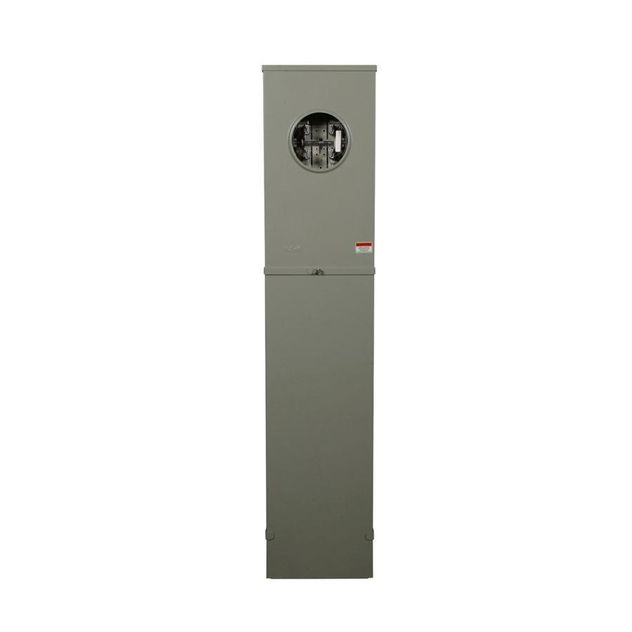

Eaton 1009018CH
