Eaton 1009078CH
SKU: CS5014280MPN: 1009078CHUPC/EAN: 782116299454
Eaton metered pedestal
$1,049.29
UnitAvailable on backorder
Product Details
Eaton Metered Pedestals With Main Breaker, RESI/commercial, Provisions for 100A max plug-in main breaker, 100A, 240V, Ringless, 22 kAIC, Solid top mounting, Underground feed, Four-jaws, #6-350 kcmil line, #6-250 kcmil load, Horn bypass
Attributes
| Amperage Rating | 100A |
| Bypass | Horn |
| Feed Type | Bottom |
| Hub Type | Solid top |
| Interrupt Rating | 22 kAIC |
| Line | #6-350 kcmil |
| Main Circuit Breaker | Provisions |
| Mounting | Solid top |
| Number Of Jaws | Four-jaw |
| Phase | Single-phase |
| Prod Load | #6-250 kcmil |
| Secondary Circuit Breaker | 100A |
| Security | Ringless |
| Type | Residential/commercial |
| Utility Approvals | WI : WE Energies / Wisconsin Public Service (WPS) |
| Voltage Rating | 240V |
| Voltage Rating Uom | INH |
Specifications
| SKU | CS5014280 |
|---|---|
| MPN | 1009078CH |
| UPC/EAN | 782116299454 |
You may also like
Eaton 1009264CH
$690.44Unit
Eaton 1009017CH
$1,526.14Unit
Eaton 1009079CH
$316.94Unit
Eaton 1009018CH
$1,053.76Unit
Eaton 1008846CH
$1,138.81Unit
Eaton 1009841CH
$2,516.43UnitEaton 1009085CH
$496.38UnitEaton 1009565CH
$2,516.43UnitEaton 1009265CH
$750.25Unit
Eaton 1009846CH
$5,649.78Unit

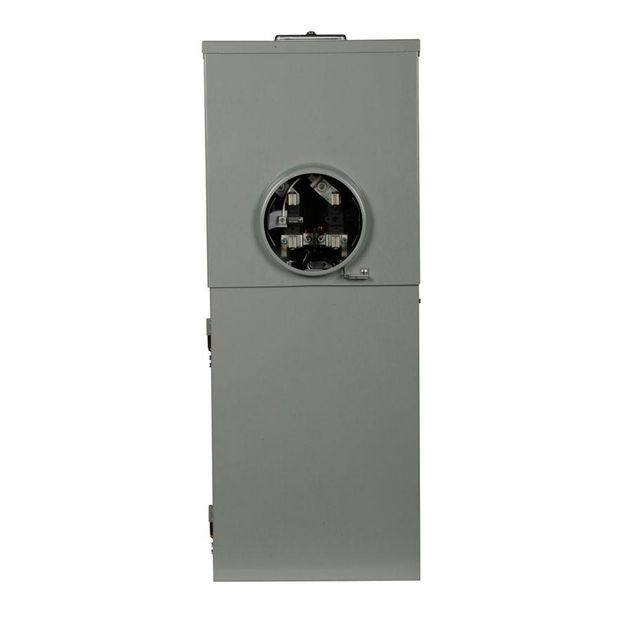

Eaton MB816P200STD
$1,166.47Unit

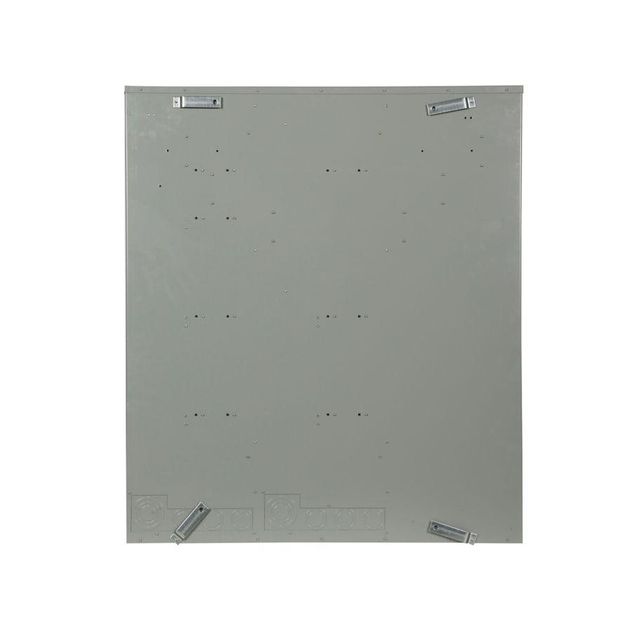

Eaton 1MP6126RRLBT
