Eaton S811+N37P3S

Name: Eaton S811+N37P3S
Brand: Eaton
SKU: CS4989523
Price: 4755.29 USD
Availability: OutOfStock

SKU: CS4989523MPN: S811+N37P3SAlternate Part #: 3-4030-002CUPC/EAN: 786685558905

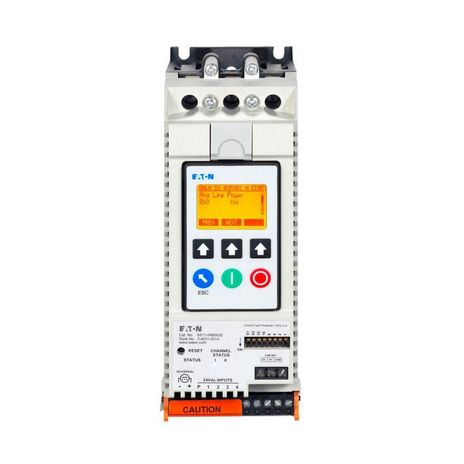

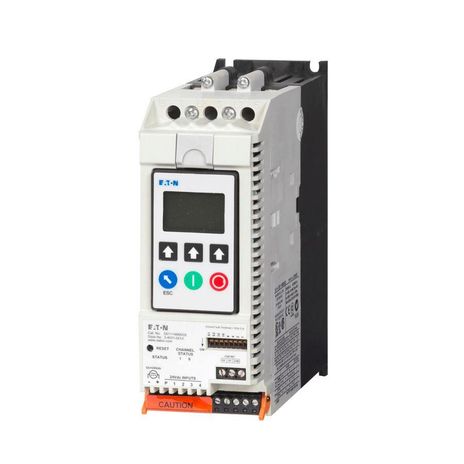

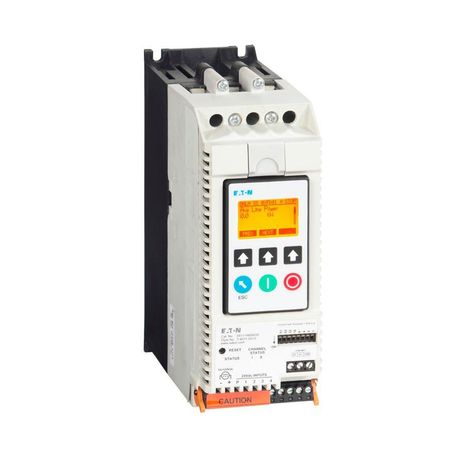

Eaton S811+ soft starter

Product Details

Eaton S811+ soft starter, 37 A, N-frame, Premium, 600 V rated, Level/Edge Sense, Three-pole, 24 V power, 200-600 V operating voltage, 47-63 Hz, 1-2 conductors, #22-14 AWG wire, 120 Vdc, 240 Vac

Attributes

Ac Current Max	240 Vac
Amperage Rating	37A
Communication	Modbus RTU
Configuration	Inline (default) or inside the delta
Dc Current Max	120 Vdc
Display Material	LCD
Frame Size	N
Frequency Rating	47-63 Hz
Module Interface	Digital interface module
Nema Rating	NEMA 0
Number Of Poles	Three-pole
Operating Temperature Max	50 CEL
Operating Temperature Max Uom	CEL
Operating Temperature Min	-30 CEL
Operating Temperature Min Uom	CEL
Operating Voltage	200-600 V
Options	600V rated Pump control and extended ramp Premium Level/edge sense Inline or inside-the-delta wiring configuration
Power Supply	24 V
Size	NEMA 0
Type	Soft starter
Used With	Three-phase motors
Wire Size	#22-14 AWG
