Eaton S811+T24P3S

Name: Eaton S811+T24P3S
Brand: Eaton
SKU: CS3739384
Price: 15221.67 USD
Availability: OutOfStock

SKU: CS3739384MPN: S811+T24P3SAlternate Part #: 3-4033-005CUPC/EAN: 786685559018

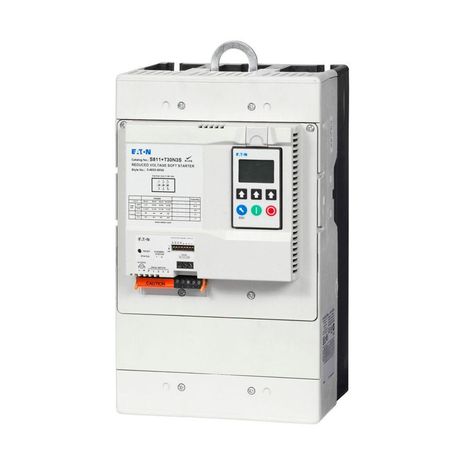

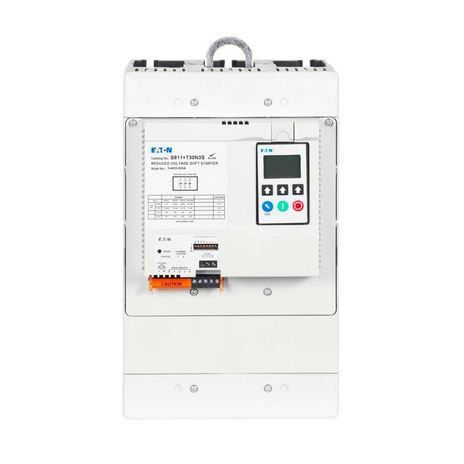

Eaton S811+ soft starter

Eaton S811+T18P3S, S811+T24P3S, S811+T30P3S

Product Details

Eaton S811+ soft starter, 240 A, T-frame, Premium, 600 V rated, Level/Edge Sense, 24 V power, 47-63 Hz, 1-2 conductors, # 4 AWG to 500 kcmil wire, 120 Vdc, 240 Vac, Modbus RTU, NEMA 0, LCD display, -30°C to -50°C

Attributes

Ac Current Max	240 Vac
Amperage Rating	240A
Communication	Modbus RTU
Configuration	Inline (default) or inside the delta
Dc Current Max	120 Vdc
Display Material	LCD
Frame Size	T
Frequency Rating	47-63 Hz
Module Interface	Digital interface module
Nema Rating	NEMA 0
Number Of Poles	Three-pole
Operating Temperature Max	50 CEL
Operating Temperature Max Uom	CEL
Operating Temperature Min	-30 CEL
Operating Temperature Min Uom	CEL
Operating Voltage	200-600 V
Options	Premium 600V rated Level/edge sense Inline or inside-the-delta wiring configuration Pump control and extended ramp
Power Supply	24 V
Size	NEMA 0
Type	Soft starter
Used With	Three-phase motors
Wire Size	#4 AWG-500 kcmil
