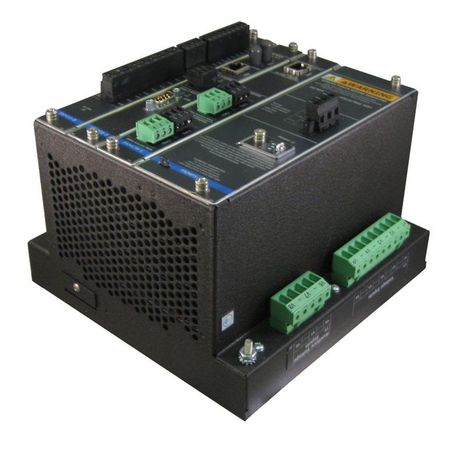

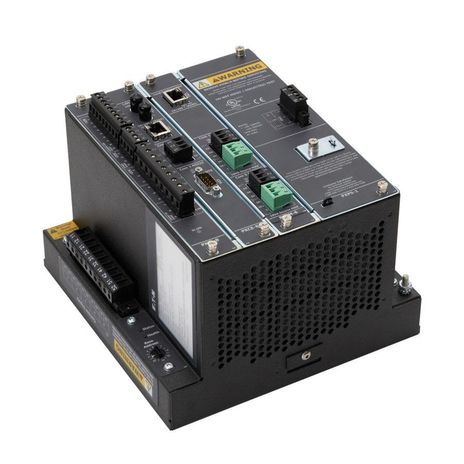

Eaton PXM8051A1AA
SKU: CS4974913MPN: PXM8051A1AAUPC/EAN: 786685424934
Eaton Power Xpert meter 8000
Contact us for pricing and availability
Product Details
Power Xpert Meter 8000, Premium PQ with transient capture, 8 GB, Voltage input; Standard (V1, V2, V3, V4), Standard 100-240 Vac or 110-250 Vdc power supply, Standard communications module with RS-485
Attributes
| Thd Current And Voltage | To 127th |
| Ansi Revenue Accuracy | C12.20 (0.2) |
| Communications | 1 x Local Ethernet Port for configuration Modbus TCP BACnet/IP File Transfer Protocol (FTP) built-in Internet/HTTP Server built-in 1xRS-485 |
| Current Sensor Input | 5A |
| Impulse Transient Capture | 6MHZ |
| Individual Harmonics Magnitude | To 85th |
| Instrumentation | Voltage Neutral-Ground View current & voltage phasors on display Watts Current & Voltage - 3 Phase Average Vars Time Of Use Energy 4 Quadrant Energy Current & Voltage - 3 Phase Min, Max Current & Voltage - % Phase Unbalance - EVENT SETTING ONLY Vah Ground Current Current Demand Frequency Displacement Power Factor Va demand Current & Voltage - Per Phase Varh Neutral Current Wh –Net Watt Demand Va Apparent Power Factor Per Phase Power Factor Demand Metering Wh –Positive & Negative |
| Logging | Event Log Data Logging LED alarm indicator Min/Max Log Time / date stamp Audible Alarm |
| Memory | 8 GB |
| Modification 1 | Standard communications module with RS-485 |
| Power Quality Analysis | View Harmonic Spectrum At Device PQ Index Graph -Premium Number Of 9’S Availability K-Factor Crest Factor Flicker SEMI F47 ITIC Performance Curve |
| Power Supply Voltage | 100-240 V, 110-250 Vdc |
| Special Features | No options |
| Type | Premium PQ with transient capture |
| Waveform Analysis | Waveform Captured On Threshold / Input Captured Waveforms Displayed on Meter/GUI Voltage Disturbance Wave Capture Trigger Waveform recording duration - 60 cycles Excess Dv/Dt Or Interruption Capture Trigger Comtrade - Standard IEEE File Format |
| Waveform Capture Sampling Rate | 4096 Oversampling/cycle |
Specifications
| SKU | CS4974913 |
|---|---|
| MPN | PXM8051A1AA |
| UPC/EAN | 786685424934 |
