All ProductsEaton

Eaton PDG23G0100E2NN

SKU: CS4933221MPN: PDG23G0100E2NNAlternate Part #: 84D5568G14UPC/EAN: 786679258880

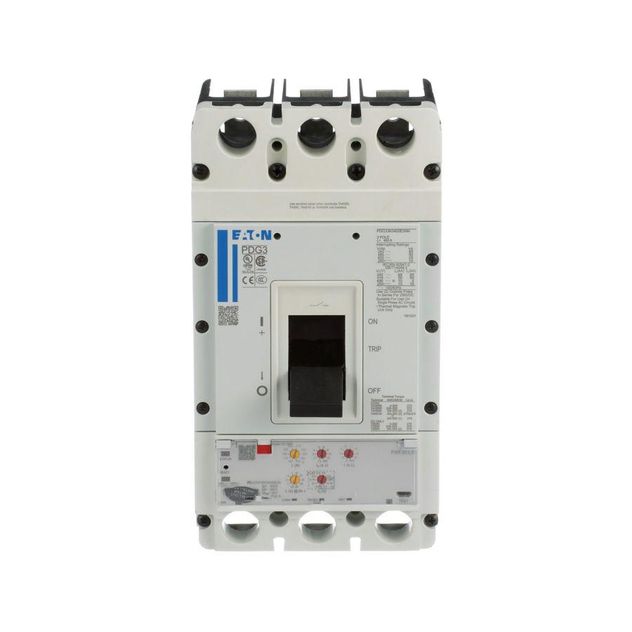

Eaton Power Defense molded case circuit breaker

Eaton PDG23G0060E2CJ, PDG23G0060E2CK, PDG23G0060E2CL, PDG23G0060E2CN, PDG23G0060E2MJ, PDG23G0060E2MK, PDG23G0060E2ML, PDG23G0060E2MN, PDG23G0060E2NJ, PDG23G0060E2NK, PDG23G0060E2NL, PDG23G0060E2NN, PDG23G0060E2RJ, PDG23G0060E2RK, PDG23G0060E2RL
Eaton PDG23G0060E2CJ, PDG23G0060E2CK, PDG23G0060E2CL, PDG23G0060E2CN, PDG23G0060E2MJ, PDG23G0060E2MK, PDG23G0060E2ML, PDG23G0060E2MN, PDG23G0060E2NJ, PDG23G0060E2NK, PDG23G0060E2NL, PDG23G0060E2NN, PDG23G0060E2RJ, PDG23G0060E2RK, PDG23G0060E2RL
Eaton PDG23G0060E2CJ, PDG23G0060E2CK, PDG23G0060E2CL, PDG23G0060E2CN, PDG23G0060E2MJ, PDG23G0060E2MK, PDG23G0060E2ML, PDG23G0060E2MN, PDG23G0060E2NJ, PDG23G0060E2NK, PDG23G0060E2NL, PDG23G0060E2NN, PDG23G0060E2RJ, PDG23G0060E2RK, PDG23G0060E2RL
Eaton PDG23G0060E2CJ, PDG23G0060E2CK, PDG23G0060E2CL, PDG23G0060E2CN, PDG23G0060E2MJ, PDG23G0060E2MK, PDG23G0060E2ML, PDG23G0060E2MN, PDG23G0060E2NJ, PDG23G0060E2NK, PDG23G0060E2NL, PDG23G0060E2NN, PDG23G0060E2RJ, PDG23G0060E2RK, PDG23G0060E2RL
Eaton PDG23G0060E2CJ, PDG23G0060E2CK, PDG23G0060E2CL, PDG23G0060E2CN, PDG23G0060E2MJ, PDG23G0060E2MK, PDG23G0060E2ML, PDG23G0060E2MN, PDG23G0060E2NJ, PDG23G0060E2NK, PDG23G0060E2NL, PDG23G0060E2NN, PDG23G0060E2RJ, PDG23G0060E2RK, PDG23G0060E2RL
Eaton PDG23G0060E2CJ, PDG23G0060E2CK, PDG23G0060E2CL, PDG23G0060E2CN, PDG23G0060E2MJ, PDG23G0060E2MK, PDG23G0060E2ML, PDG23G0060E2MN, PDG23G0060E2NJ, PDG23G0060E2NK, PDG23G0060E2NL, PDG23G0060E2NN, PDG23G0060E2RJ, PDG23G0060E2RK, PDG23G0060E2RL
$942.03
Unit
Available on backorder
remove
add

Product Details

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Three Pole, 100A, 35kA/480V, PXR20 LSI TU, No Terminals

Attributes

Amperage Rating 100 A
Circuit Breaker Frame Type Complete breaker
Circuit Breaker Type PD2 Global
Class Class A
Frame 2
Interrupt Rating 35 kAIC at 480 Vac
Interrupt Rating Range 10 kAIC Icu @125 Vdc 10 kAIC Icu @250 Vdc 20 kAIC Icu/ 15/13 kAIC Ics/ 42 kAIC Icm @525V South Africa (IEC) 36 kAIC Icu/ 36 kAIC Ics/ 75.6 kAIC Icm @380-415V (IEC) 18 kAIC @600V (UL/CSA) 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @480V Brazil (IEC) 55 kAIC Icu/ 55 kAIC Ics/ 121 kAIC Icm @240V (IEC) 65 kAIC @240V (UL) 8 kAIC Icu/ 4 kAIC Ics/ 16.8 kAIC Icm @690V (IEC) 30 kAIC Icu/ 22.5 kAIC Ics/ 63 kAIC Icm @440V (IEC) 35 kAIC @480V (UL)
Number Of Poles Three-pole
Rated Operation Voltage Ue At Ac Max 600.0000
Switch Off Technique Electronic
Terminals No Terminals
Trip Rating 100 A
Trip Type PXR 20 LSI
Voltage Rating 600 Vac
Voltage Rating Max 600 VLT
Voltage Rating Max Uom VLT
Voltage Rating Uom VLT

Specifications

SKUCS4933221
MPNPDG23G0100E2NN
Alternate Part #84D5568G14
UPC/EAN786679258880
