Eaton PDG23G0100B2NL
SKU: CS4933172MPN: PDG23G0100B2NLAlternate Part #: 81D6552G02UPC/EAN: 786679778715

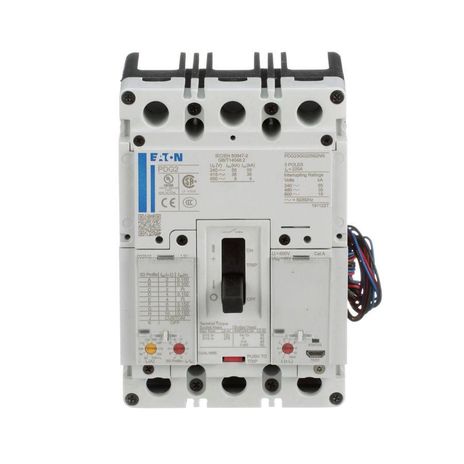

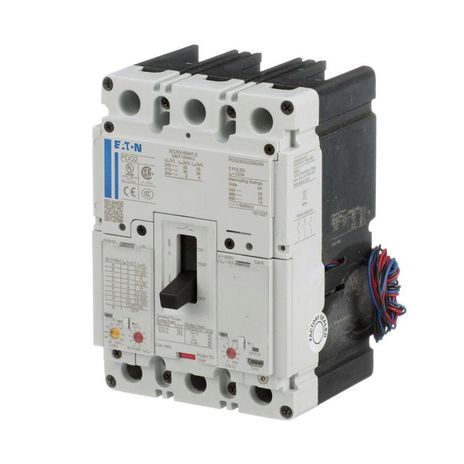

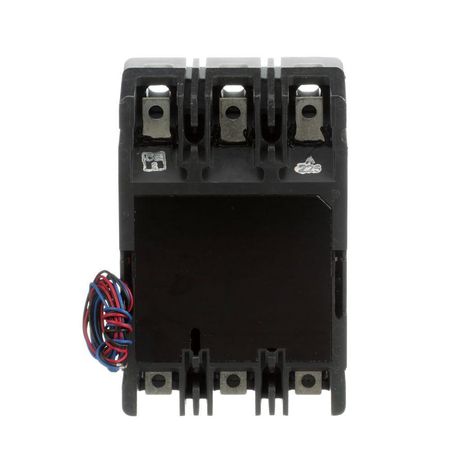

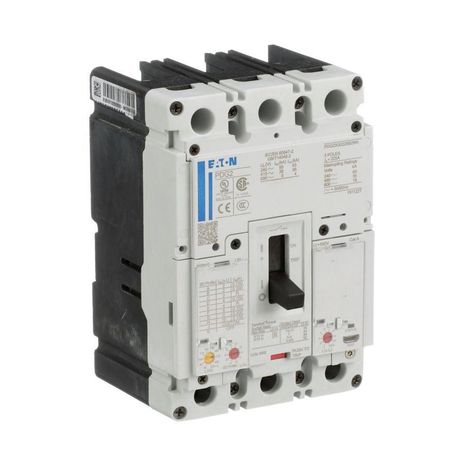

Eaton Power Defense molded case circuit breaker
$787.28
UnitAvailable on backorder
Product Details
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 2, Three Pole, 100A, 35kA/480V, PXR10 LSI TU, Standard Terminals Load Only (PDG2X3T100)
Attributes
| Amperage Rating | 100 A |
| Circuit Breaker Frame Type | Complete breaker |
| Circuit Breaker Type | PD2 Global |
| Class | Class A |
| Frame | 2 |
| Interrupt Rating | 35 kAIC at 480 Vac |
| Interrupt Rating Range | 30 kAIC Icu/ 22.5 kAIC Ics/ 63 kAIC Icm @440V (IEC) 18 kAIC @600V (UL/CSA) 8 kAIC Icu/ 4 kAIC Ics/ 16.8 kAIC Icm @690V (IEC) 36 kAIC Icu/ 36 kAIC Ics/ 75.6 kAIC Icm @380-415V (IEC) 65 kAIC @240V (UL) 10 kAIC Icu @125 Vdc 20 kAIC Icu/ 15/13 kAIC Ics/ 42 kAIC Icm @525V South Africa (IEC) 55 kAIC Icu/ 55 kAIC Ics/ 121 kAIC Icm @240V (IEC) 10 kAIC Icu @250 Vdc 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @480V Brazil (IEC) 35 kAIC @480V (UL) |
| Number Of Poles | Three-pole |
| Rated Operation Voltage Ue At Ac Max | 600.0000 |
| Switch Off Technique | Electronic |
| Terminals | Standard Terminals Load Only |
| Trip Type | PXR 10 LSI |
| Voltage Rating | 600 Vac |
| Voltage Rating Max | 600 VLT |
| Voltage Rating Max Uom | VLT |
| Voltage Rating Uom | VLT |
Specifications
| SKU | CS4933172 |
|---|---|
| MPN | PDG23G0100B2NL |
| Alternate Part # | 81D6552G02 |
| UPC/EAN | 786679778715 |
