Eaton LSM-02

Name: Eaton LSM-02
Brand: Eaton
SKU: CS4896301
Price: 127.58 USD
Availability: OutOfStock

SKU: CS4896301MPN: LSM-02UPC/EAN: 786685392141

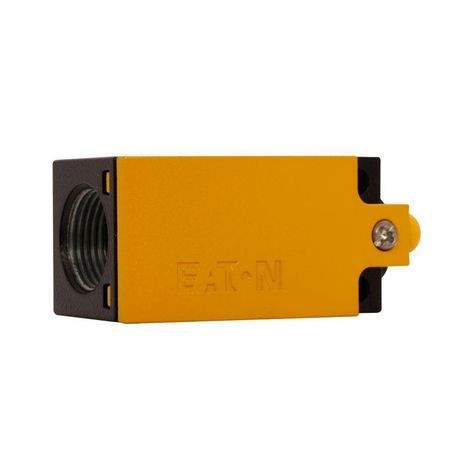

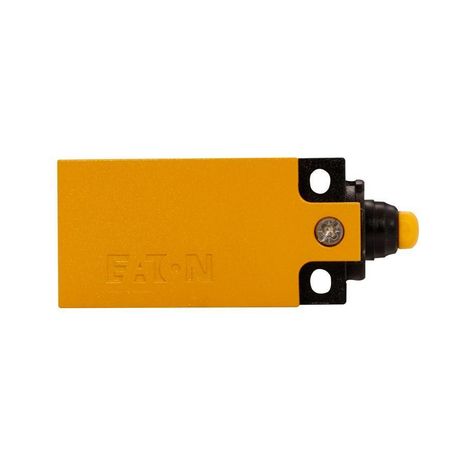

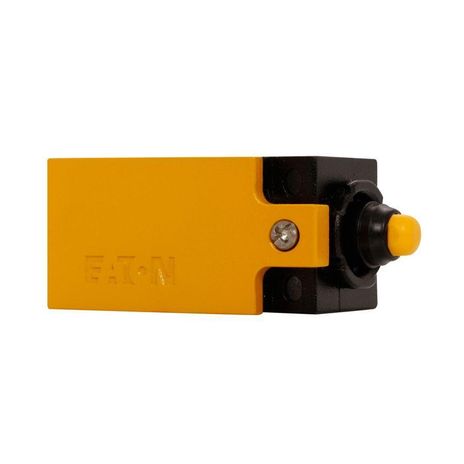

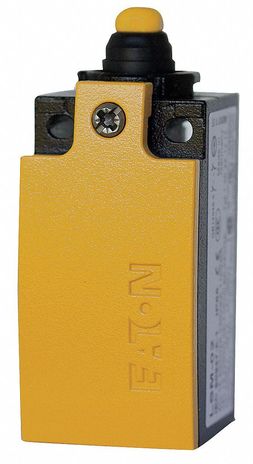

Eaton LS-Titan miniature DIN limit switch

Product Details

Eaton LS-Titan Miniature DIN Limit Switch, Top Push Plunger, Die Cast Zinc enclosure, 6A max AC, 3A max DC, 2NC, Slow Make Break, Positive Opening, 6A at 240Vac, 3A at 24Vdc, Cage Clamps, ±0.02mm accuracy

Attributes

Accuracy	±0.02mm
Connection	Cage clamps
Contact Configuration	2 NC, slow make break, positive opening
Contact Rating	6A at 240Vac, 3A at 24Vdc
Enclosure Material	Die cast zinc
Environmental Rating	IP66, IP67
Maximum Ac Current	6 A
Maximum Dc Current	3 A
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Switch Type	Top push plunger
Type	LS-Titan
