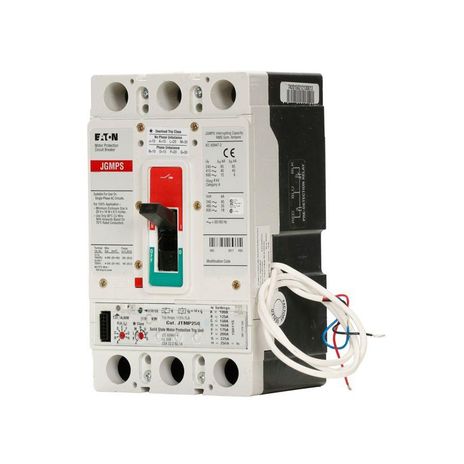

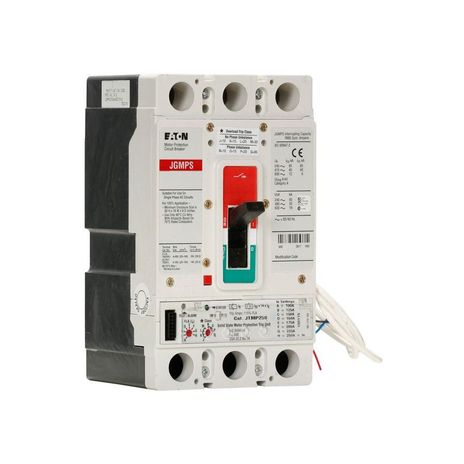

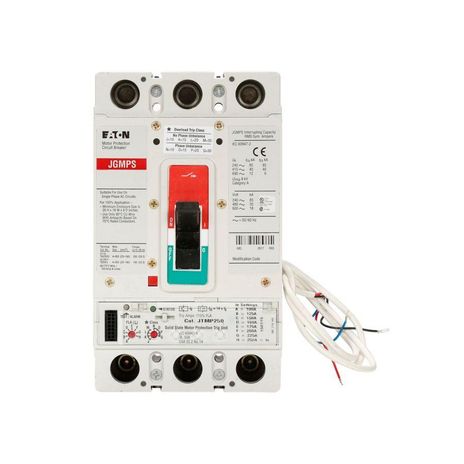

Eaton JGMPS250WA3D15Y2
SKU: CS4891881MPN: JGMPS250WA3D15Y2Alternate Part #: 75D1011G13UPC/EAN: 786685882918
Eaton Series G motor protection circuit breaker
$5,603.21
UnitAvailable on backorder
Product Details
Eaton Series G motor protection circuit breaker, JG-frame, JG, Fixed thermal and magnetic trips, Three-pole, 250A, 600 Vac, 35 kAIC at 480 Vac, Load side end cap, optional line side, Imperial, 1A-1B rear w/24 in right pigtail
Attributes
| Amperage Rating | 250 A |
| Auxiliary Switch | 1A-1B rear with 24 in right pigtail |
| Circuit Breaker Frame Type | Complete breaker |
| Circuit Breaker Type | JG |
| Class | Motor protection |
| Frame | JG |
| Interrupt Rating | 35 kAIC at 480 Vac |
| Mounting Hardware | Imperial |
| Number Of Poles | Three-pole |
| Terminals | Load side end cap, optional line side |
| Trip Type | Fixed thermal, fixed magnetic |
| Type | Series G, JGMP-frame, Molded Case Circuit Breaker |
| Voltage Rating | 600 Vac |
| Voltage Rating Uom | VLT |
Specifications
| SKU | CS4891881 |
|---|---|
| MPN | JGMPS250WA3D15Y2 |
| Alternate Part # | 75D1011G13 |
| UPC/EAN | 786685882918 |
