Eaton FG3100M04
SKU: CS4876891MPN: FG3100M04UPC/EAN: 786679071830

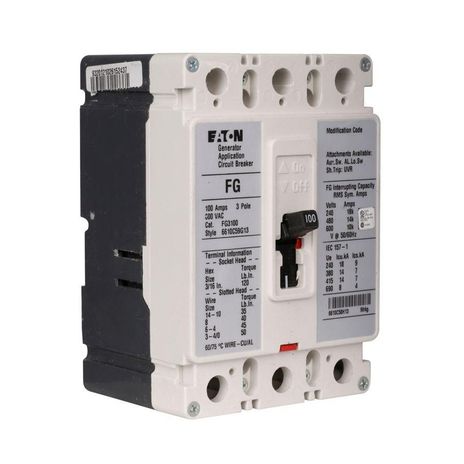

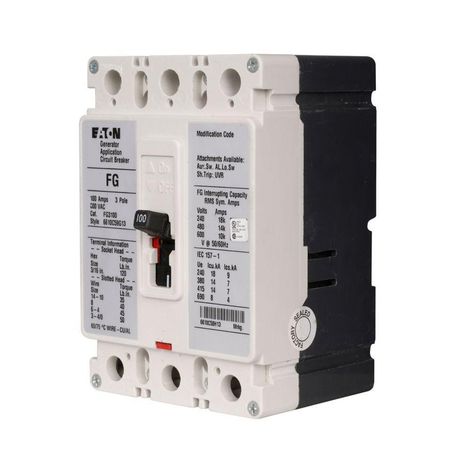

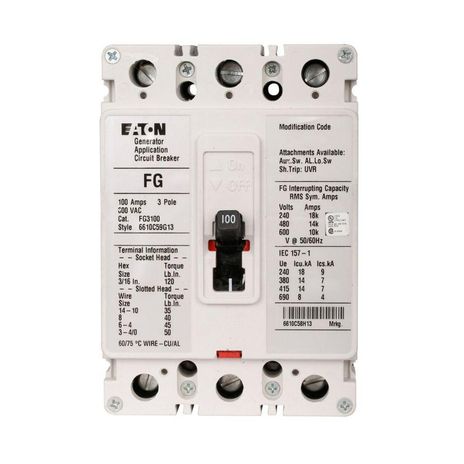

Eaton Series C complete molded case circuit breaker
$782.60
UnitAvailable on backorder
Product Details
Eaton Series C complete molded case circuit breaker, F-frame, FG, Fixed thermal and magnetic trips, Three-pole, 100A, 600 Vac, 18 kAIC at 240 Vac, 14 kAIC at 480 Vac, Line/load, Three or four-pole imperial mounting base, Reverse, 60 Hz
Attributes
| Amperage Rating | 100 A |
| Circuit Breaker Frame Type | Complete breaker |
| Circuit Breaker Type | FG |
| Class | Engine generator |
| Frame | F |
| Frequency Rating | 60 Hz |
| Functions | Reverse |
| Generator Rating | 36 kVA/29 kW at 240 Vac, 72 kVA/58 kW at 480 Vac, 90 kVA/72 kW at 600 Vac |
| Interrupt Rating | 18 kAIC at 240 Vac 14 kAIC at 480 Vac |
| Mounting Hardware | Three or four-pole imperial mounting base |
| Number Of Poles | Three-pole |
| Pickup | Fixed |
| Terminals | Line and load |
| Trip Type | Fixed thermal, fixed magnetic |
| Voltage Rating | 600 Vac |
| Voltage Rating Uom | FAH |
Specifications
| SKU | CS4876891 |
|---|---|
| MPN | FG3100M04 |
| UPC/EAN | 786679071830 |
