Eaton E59-M30A115C02-D2

Name: Eaton E59-M30A115C02-D2
Brand: Eaton
SKU: CS4873684
Price: 248.69 USD
Availability: OutOfStock

SKU: CS4873684MPN: E59-M30A115C02-D2Alternate Part #: 41-3192-53UPC/EAN: 782116183661

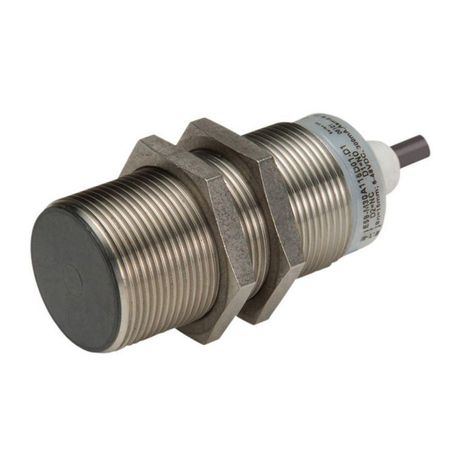

Eaton E59 iProx programmable inductive proximity sensor

Eaton E59-30LE22-BD, E59-M12A105A01-A2, E59-M12A105A01P-A1, E59-M12A105A01P-A2, E59-M12A105A01PB-A1, E59-M12A105A01PB-A2, E59-M12A105C02-A1, E59-M12A105C02-A2, E59-M12A105C02-D1NN, E59-M12A105C02-D1PP, E59-M12A105C02-D1S4, E59-M12A105C02-D2, E59-M12A105C02-D3NN, E59-M12A105C02-D3PP, E59-M12A105D01-D1NN

Eaton E59-M30A115C02-A2, E59-M30A115C02-D1NN, E59-M30A115C02-D1PP, E59-M30A115C02-D1S1, E59-M30A115C02-D2

Product Details

Eaton Iprox Series Tubular Inductive Proximity Sensor Enclosure, 1.18 dia, Sensor dist 15 mm, NPN/PNP Auto Configure, NC, 500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc, 6.6 Ft. (2m) Cable, 6-48 Vdc input, \<1% of sensing dist. accuracy, Shielded

Attributes

Accuracy	< 1% of sensing distance
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	NPN/PNP auto configure, NC
Contact Rating	500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc
Enclosure Material	Front cap: polyphenylene sulfide End bell: polycarbonate Tube: stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	6-48 Vdc
Led Indicator	Green power up turns red when output energized
Maximum Dc Current	500 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset short circuit
Sensor Type	Inductive proximity
Series	E59
