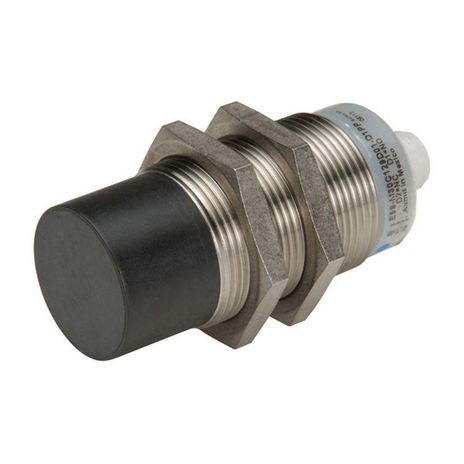

Eaton E59-M30C129D01-D2
SKU: CS2999498MPN: E59-M30C129D01-D2Alternate Part #: 41-3192-61UPC/EAN: 782116183821
Eaton E59 iProx programmable inductive proximity sensor
$306.06
UnitAvailable on backorder
Product Details
Eaton Iprox Series Tubular Inductive Proximity Sensor Enclosure, 1.18 dia, Sensor dist 29 mm, NPN/PNP Auto Configure, NC, 500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc, 4 Pin M12 Connector, 6-48 Vdc input, \<3% of sensing dist. accuracy
Attributes
| Accuracy | < 3% of sensing distance |
| Actuator Function | Unshielded |
| Connection | 4-pin M12 connector |
| Contact Configuration | NPN/PNP auto configure, NC |
| Contact Rating | 500 mA at 6-30 Vdc, 300 mA at 32-48 Vdc |
| Enclosure Material | End bell: polycarbonate Tube: stainless steel Front cap: polyphenylene sulfide |
| Environmental Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K |
| Input Voltage | 6-48 Vdc |
| Led Indicator | Green power up turns red when output energized |
| Maximum Dc Current | 500 mA |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Auto reset short circuit |
| Sensor Type | Inductive proximity |
| Series | E59 |
Specifications
| SKU | CS2999498 |
|---|---|
| MPN | E59-M30C129D01-D2 |
| Alternate Part # | 41-3192-61 |
| UPC/EAN | 782116183821 |
You may also like

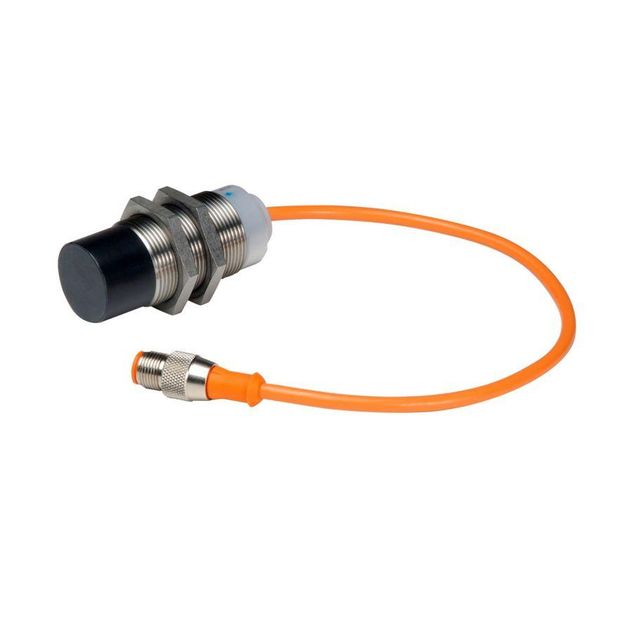

Eaton E59-M30C129D01-D3NN
$360.72Unit
Eaton E59-M30C129D01-D1PP
$379.44UnitEaton E59-M30C129D01P-D2
$343.54UnitEaton E59-M30C129D01-D1NN
$379.44Unit
Eaton E59-M30C129C02-D2
$268.58UnitEaton E59-M30C129D01-D3PP
$360.72UnitEaton E59-M30A115D01P-D2
$343.54Unit
Eaton E59-M30A115C02-D2
$268.58Unit

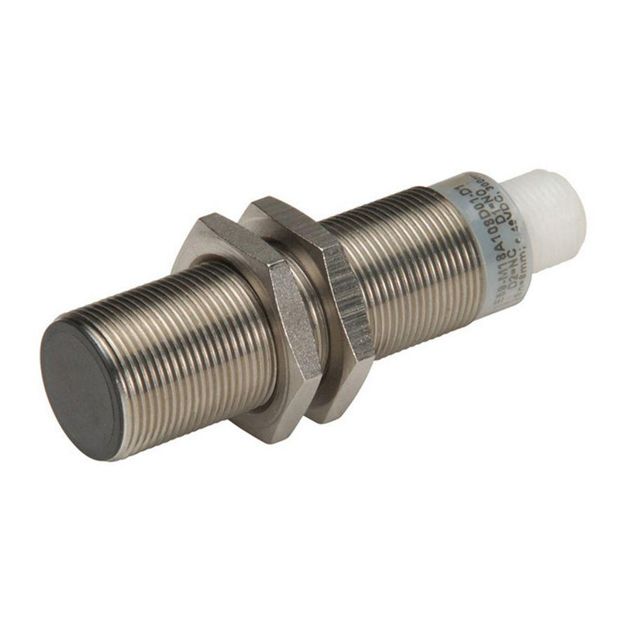

Eaton E59-M18A108D01-D2

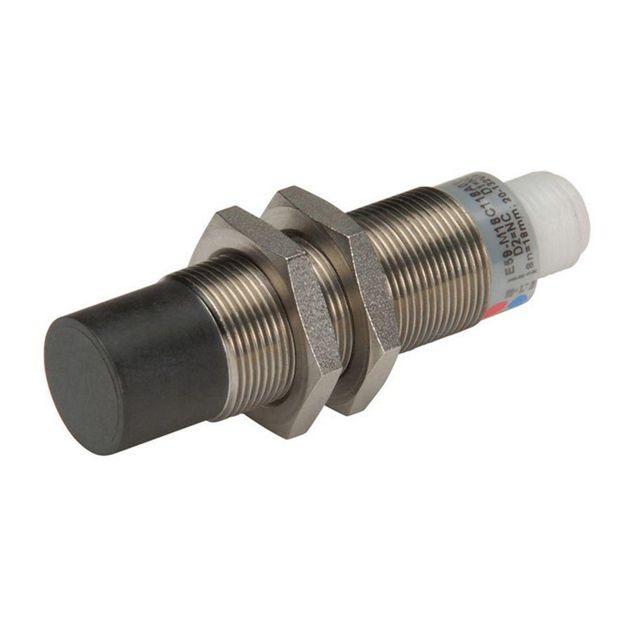

$348.24UnitEaton E59-M18C116D01P-D2
$306.06Unit
Eaton E59-M18C116D01-D2
$223.29Unit

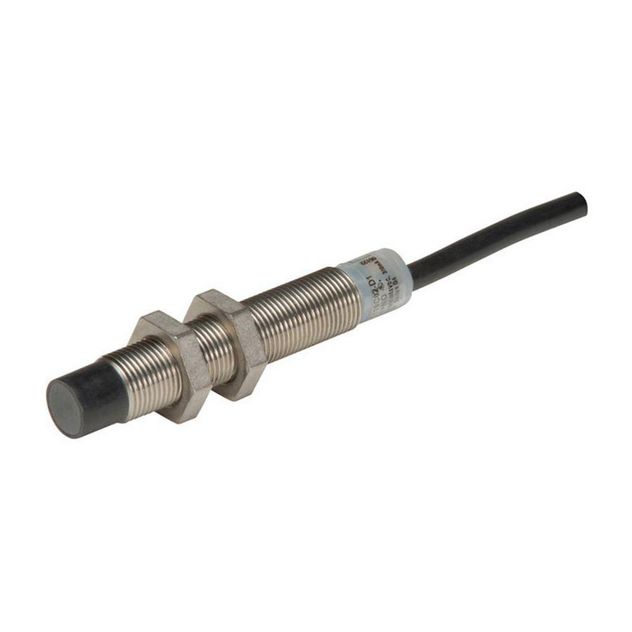

Eaton E59-M12C110C02-D2
