Eaton E57SBL18A4EA

Name: Eaton E57SBL18A4EA
Brand: Eaton
SKU: CS4873399
Price: 222.96 USD
Availability: OutOfStock

SKU: CS4873399MPN: E57SBL18A4EAUPC/EAN: 782113686196

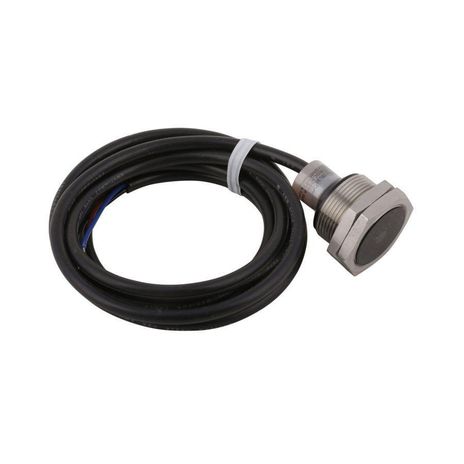

Eaton E57 inductive proximity sensor

Eaton E57SBL18A4, E57SBL18A4E, E57SBL18A4EA, E57SBL18A4SA, E57SBL30A4, E57SBL30A4E, E57SBL30A4EA, E57SBL30A4SA

Eaton E57SAL18A4, E57SAL18A4E, E57SAL18A4EA, E57SAL18A4SA, E57SBL18A4, E57SBL18A4E, E57SBL18A4EA, E57SBL18A4SA

Product Details

Eaton E57 Premium+ Series Short Body Tubular Inductive Proximity Sensor Enclosure, 0.71 dia, dist. 8 mm, 2-Wire AC, NC, 250 mA at 40-240Vac, 3 Pin Dual Key Micro Connector, 40–250 Vac input, Short circuit protected, Un-shielded

Attributes

Accuracy	< 3%
Actuator Function	Unshielded
Connection	3-pin dual key micro connector
Contact Configuration	2-wire AC, NC
Contact Rating	250 mA at 40-240Vac
Enclosure Material	Stainless steel
Environmental Rating	IP67, IP69K NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
Input Voltage	40-250 Vac
Led Indicator	Output status: red
Maximum Ac Current	250 mA
Maximum Dc Current	250 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protected
Sensor Type	Inductive proximity
Series	E57
