Eaton E57SBL12A2EA

Name: Eaton E57SBL12A2EA
Brand: Eaton
SKU: CS4873386
Price: 345.72 USD
Availability: OutOfStock

SKU: CS4873386MPN: E57SBL12A2EAUPC/EAN: 782113698281

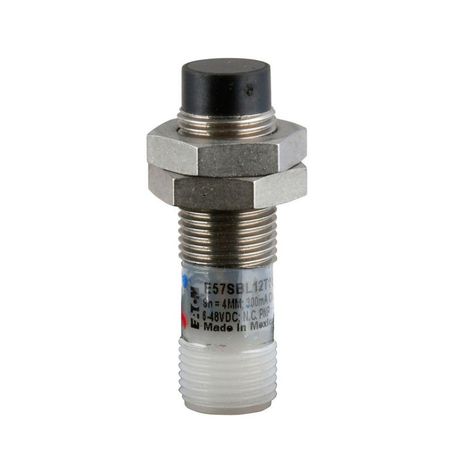

Eaton E57 inductive proximity sensor

Eaton E57SBL12A2, E57SBL12A2E, E57SBL12A2EA, E57SBL12A2SA, E57SBL12A4E5

Product Details

Eaton E57 Premium+ Series Short Body Tubular Inductive Proximity Sensor Enclosure, 0.47 dia, dist. 4 mm, 2-Wire AC/DC, NC, 250 mA at 40-240Vac/20-250Vdc, 3 Pin Dual Key Micro Connector, 40–250 Vac/20–250 Vdc input, None, Un-shielded

Attributes

Accuracy	< 3%
Actuator Function	Unshielded
Connection	3-pin dual key micro connector
Contact Configuration	2-wire AC/DC, NC
Contact Rating	250 mA at 40-240Vac/20-250Vdc
Enclosure Material	Stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
Input Voltage	40-250 Vac, 20-250 Vdc
Led Indicator	Output status: red
Maximum Ac Current	250 mA
Maximum Dc Current	250 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Inductive proximity
Series	E57
