Eaton E57LAL12T110EDY1

Name: Eaton E57LAL12T110EDY1
Brand: Eaton
SKU: CS4872973
Price: 241.75 USD
Availability: OutOfStock

SKU: CS4872973MPN: E57LAL12T110EDY1UPC/EAN: 786685493565

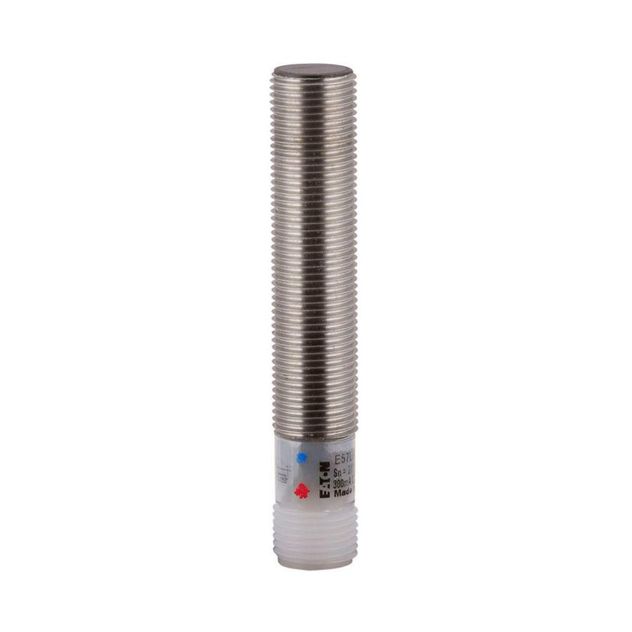

Eaton E57 inductive proximity sensor

Eaton E57LAL12A2, E57LAL12A2E, E57LAL12A2E3, E57LAL12A2E4, E57LAL12A2E5, E57LAL12A2EA, E57LAL12A2EP, E57LAL12A2S3, E57LAL12A2S4, E57LAL12A2S5, E57LAL12A2SA, E57LAL12A2SP, E57LAL12T110, E57LAL12T110E3, E57LAL12T110E4

Product Details

Eaton E57 Premium+ Series Tubular Inductive Proximity Sensor Enclosure, 0.47 dia, dist. 4 mm, NO NPN Open Collector, 500 mA at 6-30Vdc, 4 Pin M12 Connector, 6–48 Vdc input, Short circuit protected, Un-shielded, 6.6 ft (2m)

Attributes

Accuracy	< 3%
Actuator Function	Unshielded
Connection	4-pin M12 connector
Contact Configuration	NO NPN open collector
Contact Rating	500 mA at 6-30Vdc
Enclosure Material	Stainless steel
Environmental Rating	IP67, IP69K, UL Type 1, NEMA 6P, NEMA 4X
Input Voltage	6-48 Vdc
Led Indicator	Output status: red
Maximum Dc Current	500 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protected
Sensor Type	Inductive proximity
Series	E57
