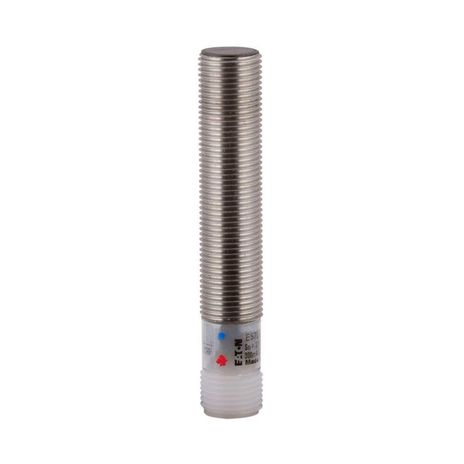

Eaton E57LAL12T110SD
SKU: CS478112MPN: E57LAL12T110SDUPC/EAN: 782113605081
Eaton E57 inductive proximity sensor
Contact us for pricing and availability
Product Details
E57 Premium+ Series Tubular Inductive Proximity Sensor, 0.47 dia, Straight, Sensor distance: 2 mm, Stainless Steel encl, 500 mA max DC, NO NPN Open Collector, 500 mA at 6-30Vdc, 4 Pin M12 Connector, 6–48 Vdc input, \< 1% accuracy, Shielded
Attributes
| Accuracy | < 1% |
| Actuator Function | Shielded |
| Connection | 4-pin M12 connector |
| Contact Configuration | NO NPN open collector |
| Contact Rating | 500 mA at 6-30Vdc |
| Enclosure Material | Stainless steel |
| Environmental Rating | IP67, IP69K, UL Type 1, NEMA 6P, NEMA 4X |
| Input Voltage | 6-48 Vdc |
| Led Indicator | Output status: red |
| Maximum Dc Current | 500 mA |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Short circuit protected |
| Sensor Type | Inductive proximity |
| Series | E57 |
Specifications
| SKU | CS478112 |
|---|---|
| MPN | E57LAL12T110SD |
| UPC/EAN | 782113605081 |
