Eaton E56CDL40A2

Name: Eaton E56CDL40A2
Brand: Eaton
SKU: CS4872557
Price: 457.35 USD
Availability: OutOfStock

SKU: CS4872557MPN: E56CDL40A2UPC/EAN: 782113591964

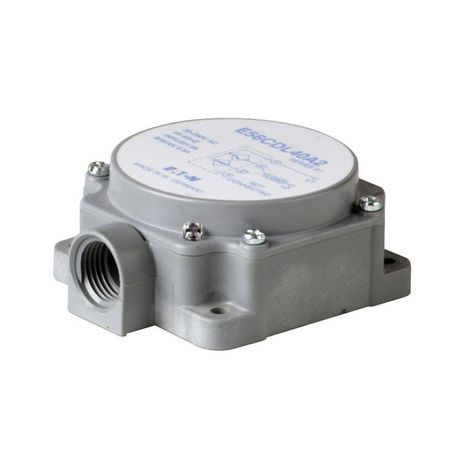

Eaton E56 pancake inductive proximity sensor

Product Details

E56 Series Pancake Style Inductive Proximity Sensor, Sensor dist: 40 mm, 400 mA max AC, 2 - Wire AC, NO or NC, 400 mA at 250 Vac, Screw Terminals, 20-250 Vac input, \< 2% accuracy, Auto reset, Shielded

Attributes

Accuracy	< 2%
Actuator Function	Shielded
Connection	Screw terminal
Contact Configuration	2-wire AC, NO/NC
Contact Rating	400 mA at 250 Vac
Enclosure Material	PPS housing
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
Input Voltage	20-250 Vac
Led Indicator	Output status
Maximum Ac Current	400 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protection with auto reset
Sensor Type	Inductive proximity
