Eaton E53KBL34A2EA

Name: Eaton E53KBL34A2EA
Brand: Eaton
SKU: CS4872499
Price: 685.89 USD
Availability: OutOfStock

SKU: CS4872499MPN: E53KBL34A2EAUPC/EAN: 782114013045

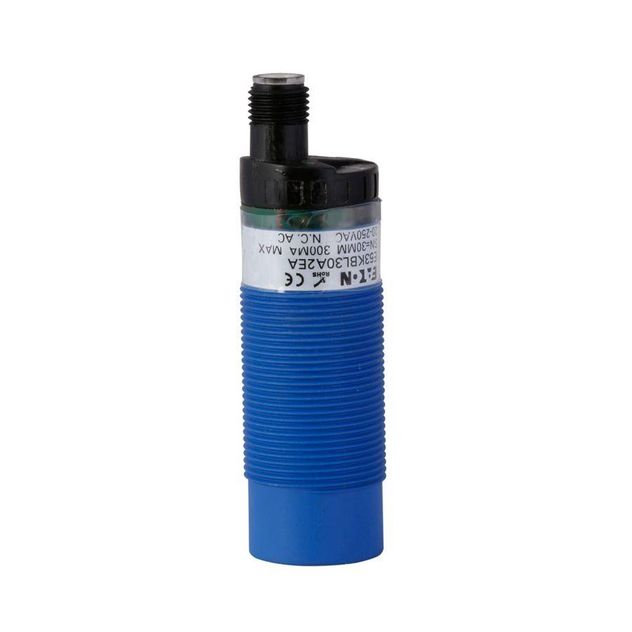

Eaton E53 tubular capacitive proximity sensor

Eaton E53KBL34A2EA, E53KBL34T110ED, E53KBL34T110SD, E53KBL34T111ED, E53KBL34T111SD

Product Details

Eaton E53 Series Tubular Capacitive Proximity Sensor, 1.34 dia, dist 35 mm, 300 mA max AC, 2-Wire AC, NC, 300 mA SS Output, 4 Pin Dual Key Micro Connector, 20–250 Vac input, \<5% accuracy, None, Un-shielded

Attributes

Accuracy	< 5%
Actuator Function	Unshielded
Connection	4-pin dual key micro connector
Contact Configuration	2-wire AC, NC
Contact Rating	300 mA Solid State Output
Enclosure Material	Body: polyoxymethylene (POM) Mounting Nuts: nylon 66 (PA66)
Environmental Rating	NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 12, NEMA 13, IP65
Input Voltage	20-250 Vac
Led Indicator	Output status
Maximum Ac Current	300 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Capacitive proximity
