Eaton E53KBL30A2EA

Name: Eaton E53KBL30A2EA
Brand: Eaton
SKU: CS3017666
Price: 662.01 USD
Availability: OutOfStock

SKU: CS3017666MPN: E53KBL30A2EAUPC/EAN: 782114013038

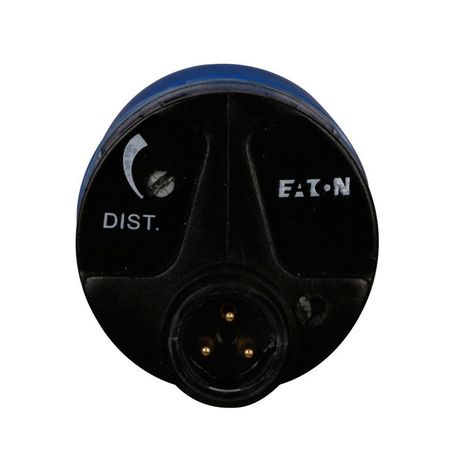

Eaton E53 tubular capacitive proximity sensor

Product Details

E53 Series Tubular Capacitive Proximity Sensor, 1.18 dia, dist 35 mm, 300 mA max AC, 2-Wire AC, NC, 300 mA SS Output, 4 Pin Dual Key Micro Connector, 20–250 Vac input, \<5% accuracy, None, Un-shielded

Attributes

Accuracy	< 5%
Actuator Function	Unshielded
Connection	4-pin dual key micro connector
Contact Configuration	2-wire AC, NC
Contact Rating	300 mA Solid State Output
Enclosure Material	Body: polyoxymethylene (POM) Mounting Nuts: nylon 66 (PA66)
Environmental Rating	NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 12, NEMA 13, IP65
Input Voltage	20-250 Vac
Led Indicator	Output status
Maximum Ac Current	300 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Capacitive proximity
