Eaton E53KBL18A2

Name: Eaton E53KBL18A2
Brand: Eaton
SKU: CS4872477
Price: 568.69 USD
Availability: OutOfStock

SKU: CS4872477MPN: E53KBL18A2UPC/EAN: 782113887692

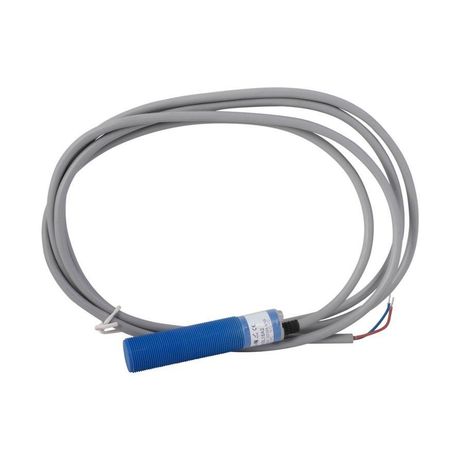

Eaton E53 tubular capacitive proximity sensor

Product Details

Eaton E53 Series Tubular Capacitive Proximity Sensor, 0.71 dia, dist 8 mm, 300 mA max AC, 2-Wire AC, NC, 300 mA SS Output, 6.6 Ft. (2m) Cable, 20–250 Vac input, \<5% accuracy, Shielded, 6.6 Ft. (2m)

Attributes

Accuracy	< 5%
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	2-wire AC, NC
Contact Rating	300 mA Solid State Output
Enclosure Material	Mounting Nuts: nylon 66 (PA66) Body: polyoxymethylene (POM)
Environmental Rating	NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 12, NEMA 13, IP65
Input Voltage	20-250 Vac
Led Indicator	Output status
Maximum Ac Current	300 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Capacitive proximity
