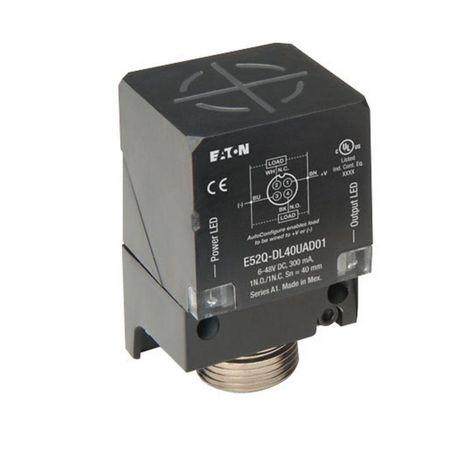

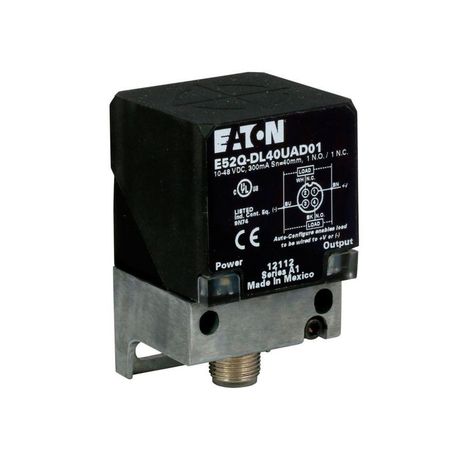

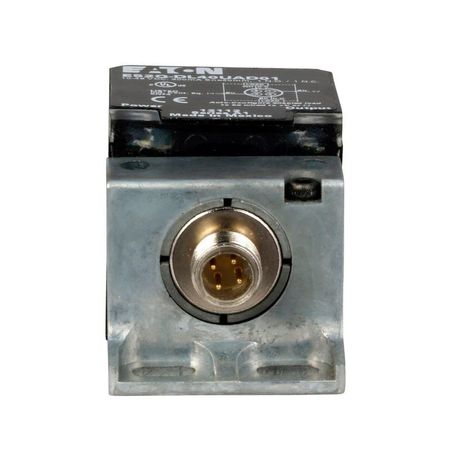

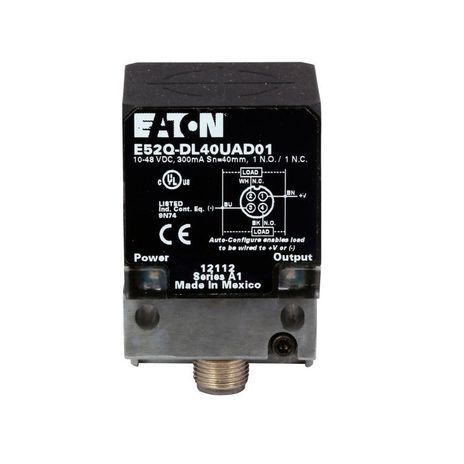

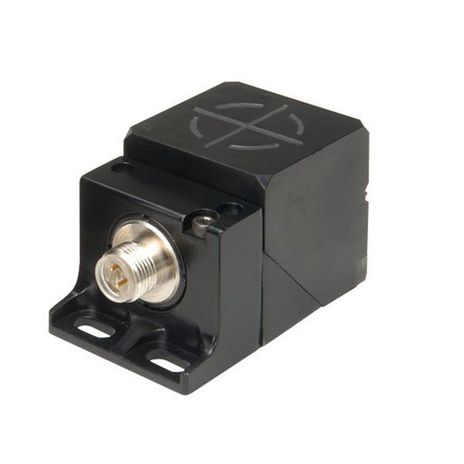

Eaton E52Q-DL40UAD01

Name: Eaton E52Q-DL40UAD01
Brand: Eaton
SKU: CS4872446
Price: 173.04 USD
Availability: OutOfStock

SKU: CS4872446MPN: E52Q-DL40UAD01UPC/EAN: 786685197166

Eaton E52 inductive proximity sensor

Product Details

Eaton E52 inductive proximity sensor, E52 Cube Style Inductive Proximity Sensor, Sensor dist.: 40 mm, PPS Housing enclosure, 300 mA max DC, Complementary NPN/PNP Auto-configure, 4 Pin M12 Connector, 6-48 Vdc input, \< 2% accuracy, Auto reset

Attributes

Accuracy	< 2%
Actuator Function	Unshielded
Connection	4-pin M12 connector
Contact Configuration	Complementary NPN/PNP auto-configure
Contact Rating	300 mA at 48 Vdc
Enclosure Material	PPS housing
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP68
Input Voltage	6-48 Vdc
Led Indicator	Output: red Power: green
Maximum Dc Current	300 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protection with auto reset
Sensor Type	Inductive proximity
