Eaton E52Q-DL35UAD01

Name: Eaton E52Q-DL35UAD01
Brand: Eaton
SKU: CS4872444
Price: 168.56 USD
Availability: OutOfStock

SKU: CS4872444MPN: E52Q-DL35UAD01UPC/EAN: 786685197142

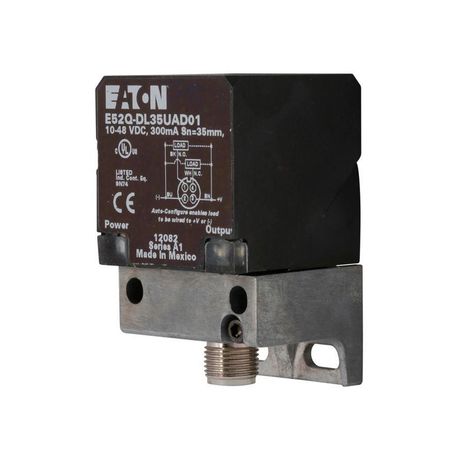

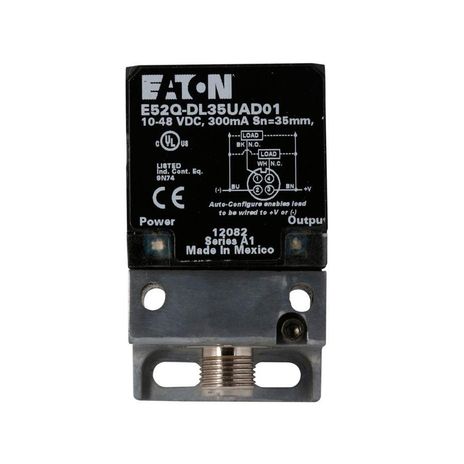

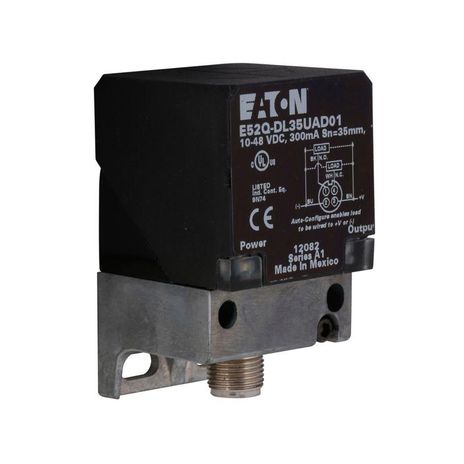

Eaton E52 inductive proximity sensor

Eaton E52-16QS04-B, E52-16QS04-B05, E52-16QS04-B1, E52-16QS04-C, E52-16QS04-C05, E52-16QS04-C1, E52-18RU04-B, E52-18RU04-B1, E52-18RU04-B1N, E52-18RU04-BN, E52-18RU04-C, E52-18RU04-C1, E52-18RU04-C1N, E52-18RU04-CN, E52-25QS10-B

Product Details

Eaton E52 inductive proximity sensor, Inductive Proximity Cube Sensor, E52, 35 mm range, Unshielded, Power (green), output status (red), M12, 300 mA, 4 pin, \<3%, Complementary NPN/PNP auto-configure, 10-48 Vdc

Attributes

Accuracy	< 3%
Actuator Function	Unshielded
Connection	M12
Contact Configuration	Complementary NPN/PNP auto-configure
Contact Rating	300 mA
Enclosure Material	Zinc alloy housing PPS PC
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP68
Input Voltage	10-48 Vdc
Led Indicator	Power: green Output: status: red
Maximum Dc Current	300 mA
Number Of Pins	4.0000
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-25 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit and auto-reset
Series	E52
Type	Inductive Proximity Cube Sensor
