Eaton E50TD1S
SKU: CS4871973MPN: E50TD1SUPC/EAN: 782113454221

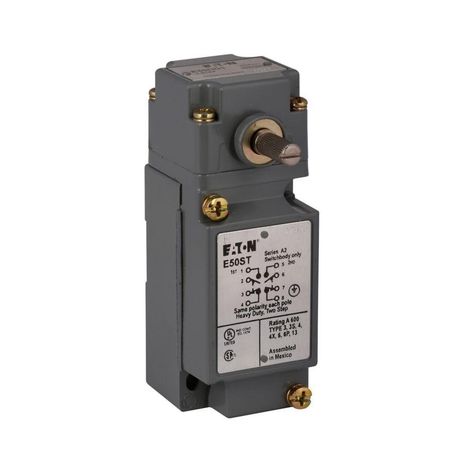

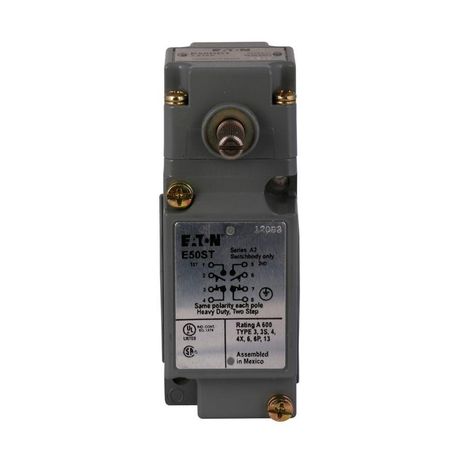

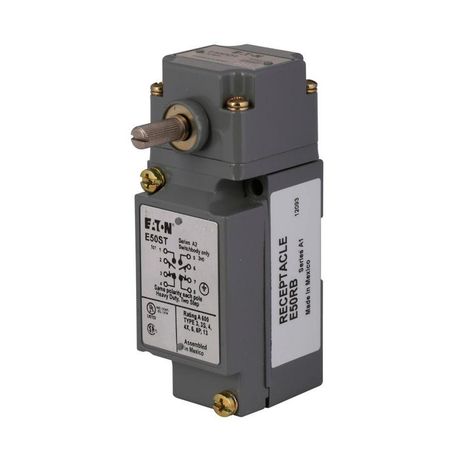

Eaton E50 NEMA heavy duty plug-in limit switch
Contact us for pricing and availability
Product Details
Eaton E50 Heavy Duty Plug-In Limit Switch, Two Step, Die Cast Zinc enclosure, 10A max AC, 1A max DC, 1NO-1NC, 10A at 240Vac, 1A at 250Vdc, 8 Ft.(2.5m) Cable, 8 Ft.(2.4m), 14° to 201°F (-10° to 94°C)
Attributes
| Accuracy | Refer to installation publication P15836 |
| Cable Type | SOOW-A |
| Connection | 8 ft (2.4 m) cable |
| Contact Configuration | 1 NO-1 NC |
| Contact Rating | 10A at 240Vac, 1A at 250Vdc |
| Enclosure Material | Die cast zinc |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Maximum Ac Current | 10 A |
| Maximum Dc Current | 1 A |
| Operating Temperature Max | 201 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | 14 FAH |
| Operating Temperature Min Uom | FAH |
| Switch Type | Two step |
Specifications
| SKU | CS4871973 |
|---|---|
| MPN | E50TD1S |
| UPC/EAN | 782113454221 |
