Eaton E50NN1S12
SKU: CS4871922MPN: E50NN1S12UPC/EAN: 782113344829

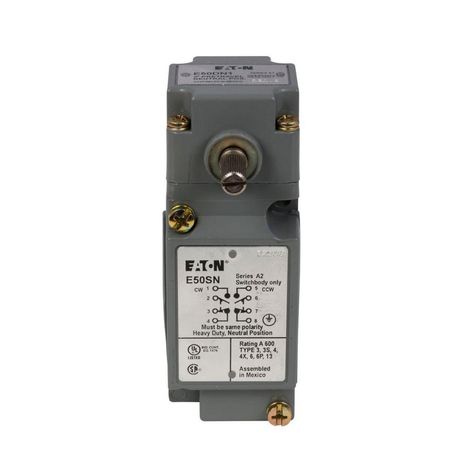

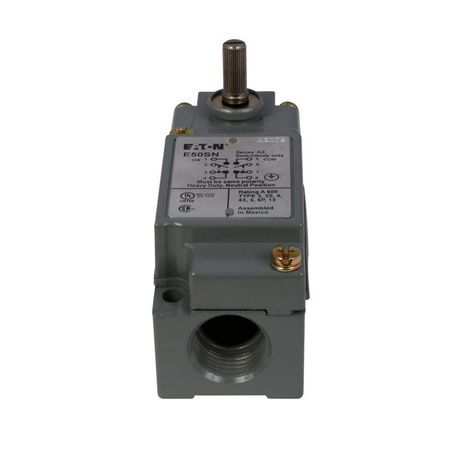

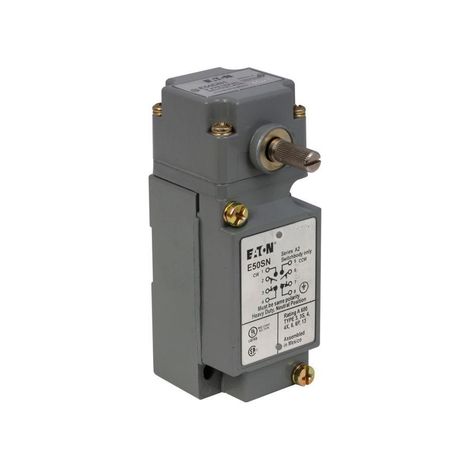

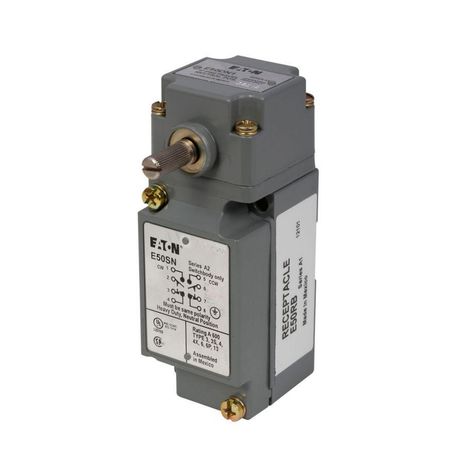

Eaton E50 NEMA heavy duty plug-in limit switch
Contact us for pricing and availability
Product Details
Eaton E50 Heavy Duty Plug-In Limit Switch, Neutral Position, Die Cast Zinc enclosure, 10A max AC, 1A max DC, 2NO-2NC, 10A at 240Vac, 1A at 250Vdc, 12 Ft. ( 3.7m ) Cable, 12 Ft. ( 3.7m ), 14° to 201°F (-10° to 94°C)
Attributes
| Accuracy | Refer to installation publication P15836 |
| Cable Type | SOOW-A |
| Connection | 12 ft (3.7 m) cable |
| Contact Configuration | 2 NO-2 NC |
| Contact Rating | 10A at 240Vac, 1A at 250Vdc |
| Enclosure Material | Die cast zinc |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Maximum Ac Current | 10 A |
| Maximum Dc Current | 1 A |
| Operating Temperature Max | 201 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | 14 FAH |
| Operating Temperature Min Uom | FAH |
| Switch Type | Neutral position |
Specifications
| SKU | CS4871922 |
|---|---|
| MPN | E50NN1S12 |
| UPC/EAN | 782113344829 |
