All ProductsEaton

Eaton E50ALL16P

SKU: CS4871681MPN: E50ALL16PUPC/EAN: 782113726731

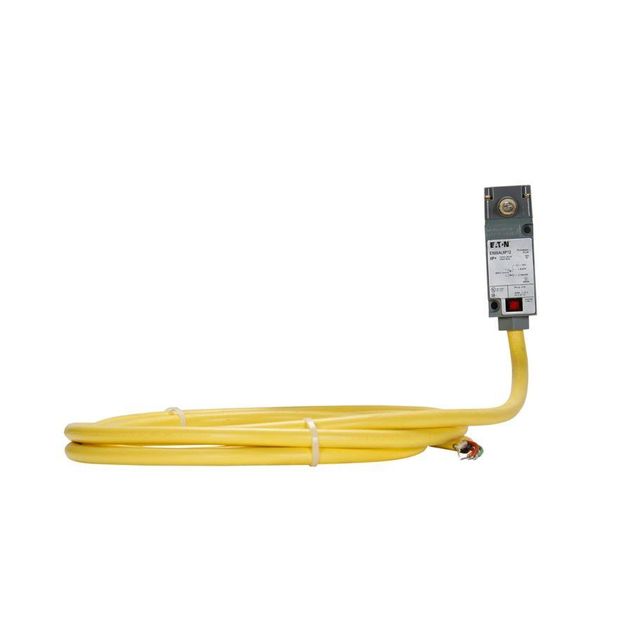

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AH1RFY1, E50AL16P20, E50AL1P5, E50ALH1, E50ALH16P, E50ALL1, E50ALL16P, E50ALM1, E50ALM16P, E50ALM16P20, E50ALR1, E50ALR16P, E50ALR16P12, E50ALR16P20, E50ALR16PC
$588.04
Unit
2 Units Available at Factory - Ships Same/Next Business Day
remove
add

Product Details

Eaton E50 Heavy Duty Factory Sealed 6P+ Limit Switch,8Ft.(2.5m)Cable,10Aat240Vac,1Aat125Vdc,SOOW-A,1NO-1NC,96Ft,Die Cast Zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,IP69K,LED(24–120 Vac/dc),10A,1A,10°to201°F,Side Rotary,low force spring return

Attributes

Accuracy Refer to installation publication P15836
Cable Type SOOW-A
Connection 8 ft (2.4 m) cable
Contact Configuration 1 NO-1 NC
Contact Rating 10A at 240Vac, 1A at 125Vdc
Enclosure Material Die cast zinc
Environmental Rating NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K
Led Indicator LED (24-120 Vac/dc)
Maximum Ac Current 10 A
Maximum Dc Current 1 A
Operating Temperature Max 201 FAH
Operating Temperature Max Uom FAH
Operating Temperature Min 10 FAH
Operating Temperature Min Uom FAH
Switch Type Side rotary

Specifications

SKUCS4871681
MPNE50ALL16P
UPC/EAN782113726731
