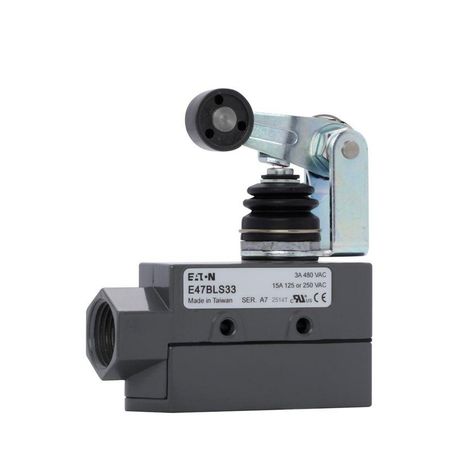

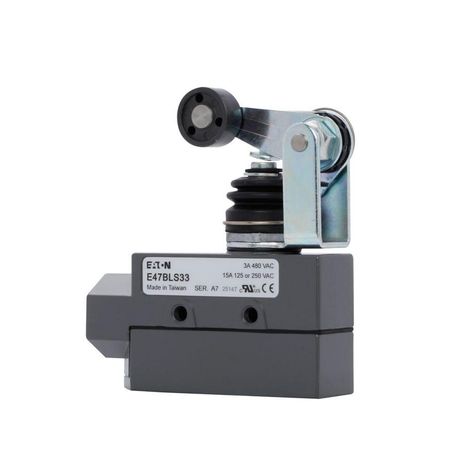

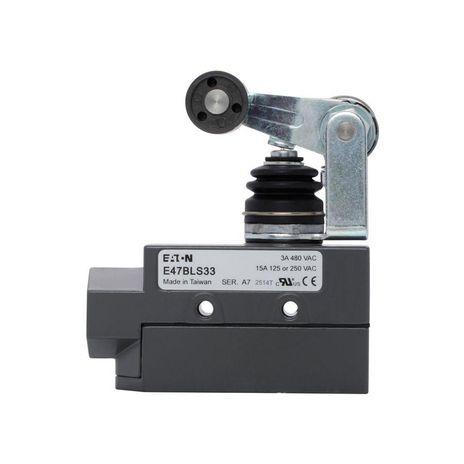

Eaton E47BLS33D
SKU: CS4871528MPN: E47BLS33DUPC/EAN: 782114111185
Eaton E47 limit switch
$92.89
UnitAvailable on backorder
Product Details
Enclosed Precision Limit Switch, E47, Booted roller lever, Screw Terminals, 15A at 250 Vac, 6A at 30 Vdc, 0.01 mm/s-1m/s, 1-SPDT (Form C), #6-32 screws
Attributes
| Accessories | #6-32 screws |
| Actuator | Booted roller lever |
| Connection | Screw terminal |
| Contact Configuration | 1-SPDT (form C) |
| Contact Rating | 15A at 250 Vac, 6A at 30 Vdc |
| Enclosure Material | Die cast aluminum |
| Environmental Rating | NEMA 1 |
| Maximum Ac Current | 15 A |
| Maximum Dc Current | 15 A |
| Operating Speed | 0.01 mm/s-1m/s |
| Operating Temperature Max | 176 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Series | E47 |
| Type | E47 |
Specifications
| SKU | CS4871528 |
|---|---|
| MPN | E47BLS33D |
| UPC/EAN | 782114111185 |
