Eaton E2L3600WA06U66
SKU: CS4868813MPN: E2L3600WA06U66Alternate Part #: 83E7585UPC/EAN: 782114501214

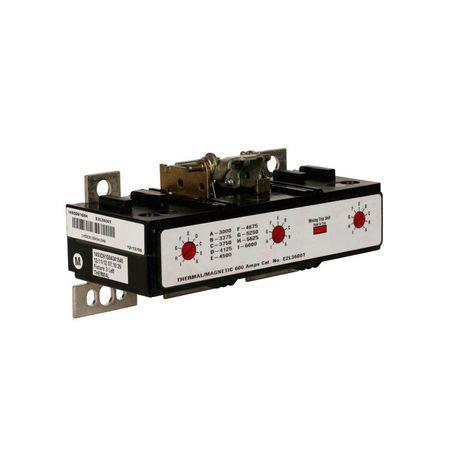

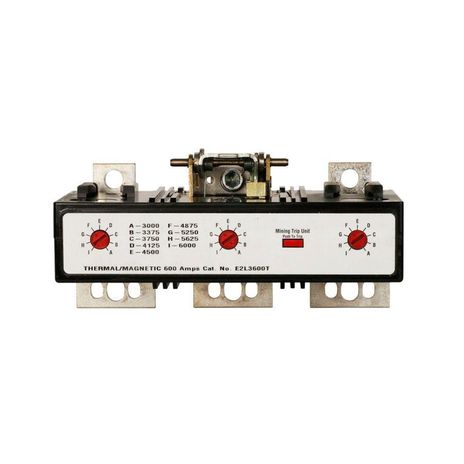

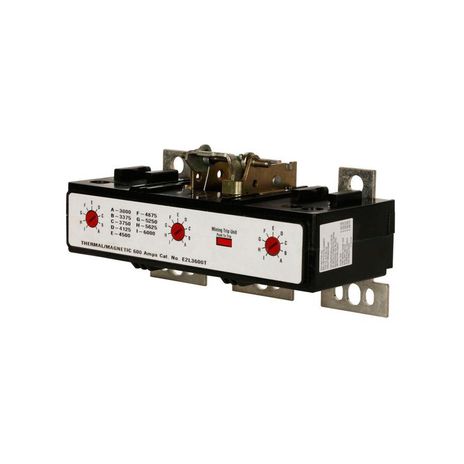

Eaton E2 mining complete molded case circuit breaker
$9,523.42
UnitAvailable on backorder
Product Details
Eaton E2 mining complete molded case circuit breaker, L-frame, E2L, Interchangeable thermal-magnetic trip, 3000-6000A trip rating, Three-pole, 600A, 600 Vac, 250 Vdc, no term., 1A-1B rear w/right pigtail, 120 Vac mining rear w/left pigtail
Attributes
| Amperage Rating | 600 A |
| Auxiliary Switch | 1A-1B rear with right pigtail |
| Circuit Breaker Frame Type | Complete breaker |
| Circuit Breaker Type | E2L |
| Class | Mining |
| Frame | L |
| Interrupt Rating | 25 kAIC at 600 Vac 22 kAIC at 250 Vdc 65 kAIC at 240 Vac 35 kAIC at 480 Vac |
| Magnetic Trip Range | 3000-6000A |
| Number Of Poles | Three-pole |
| Terminals | Without terminals |
| Trip Rating | 3000-6000 A |
| Trip Type | Interchangeable thermal-magnetic |
| Type | Specialty complete |
| Undervoltage Release | 120 Vac mining rear with left pigtail |
| Voltage Rating | 600 Vac, 250 Vdc |
| Voltage Rating Uom | AMP |
Specifications
| SKU | CS4868813 |
|---|---|
| MPN | E2L3600WA06U66 |
| Alternate Part # | 83E7585 |
| UPC/EAN | 782114501214 |
