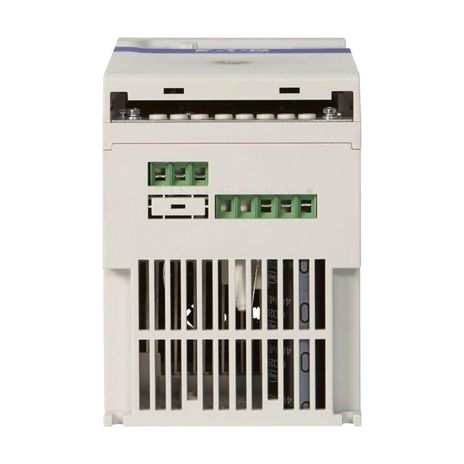

Eaton DM1-35013EB-S20S

Name: Eaton DM1-35013EB-S20S
Brand: Eaton
SKU: CS4851489
Price: 2064.39 USD
Availability: OutOfStock

SKU: CS4851489MPN: DM1-35013EB-S20SAlternate Part #: 3-5061-001AUPC/EAN: 786689578008

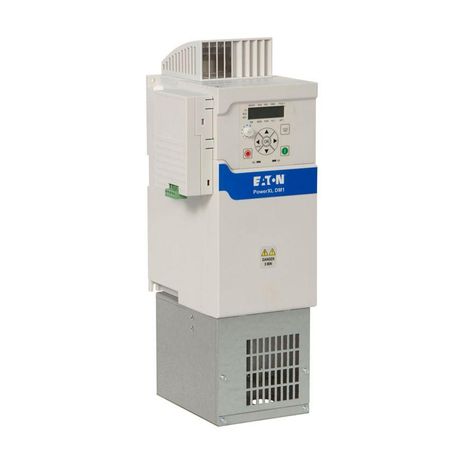

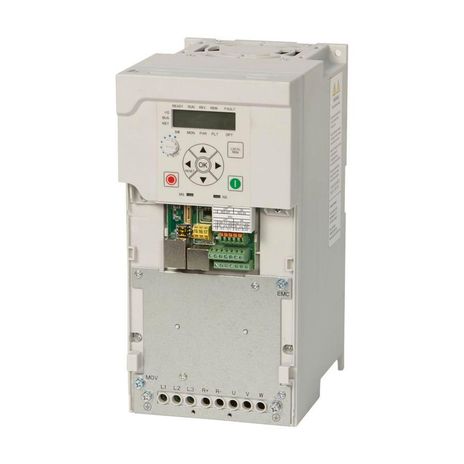

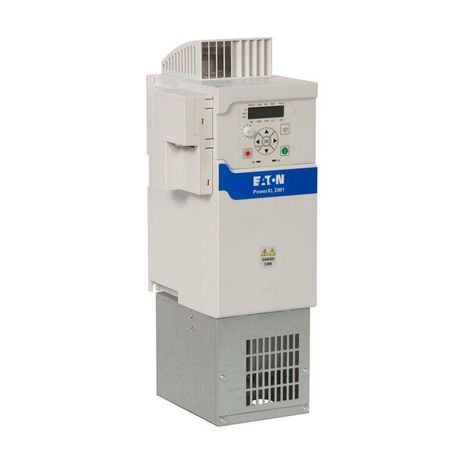

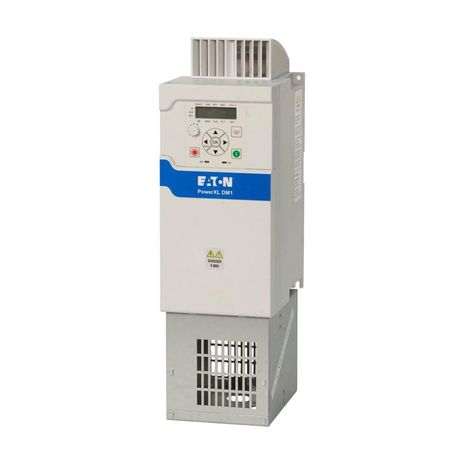

Eaton PowerXL DM1 micro variable frequency drive

Product Details

Eaton PowerXL DM1 micro variable frequency drive, Three-phase, 575V, FR3, 7.5KW, 10HP, IP20, EMI US

Ambient Operating Temperature Range	-10 to 50 °C CT -10 to 40 °C VT
Analog Inputs	1.0000
Brake Chopper	Internal brake chopper
Communications Onboard	Modbus RTU Modbus TCP Ethernet/IP BACnet IP BACnet MS/TP Bluetooth
Communications Optional	CANopen PROFIBUS SmartWireDT
Conformal Coated Boards	Yes
Digital Inputs	4.0000
Digital Outputs	0.0000
Drive Type	General purpose
Electromagnetic Compatibility Filter	Yes
Enclosure Rating	IP20
Frame Size	FR3
Fuse Size Max	40.0000
High Overload Ct Amps	13
High Overload Ct Hp	10
High Overload Ct Kw	7
Input Frequency Range	50-60 Hz
Input Phases	Three-phase
Input Voltage Range	525-600 Vac
Internal Choke	No
Internal Line Reactor	No
Low Overload Vt Amps	18
Low Overload Vt Hp	15
Low Overload Vt Kw	11
Max Overload	200 %
Motor Control Modes	V/Hz Open loop vector control
Motor Type	Induction motor Permanent magnet motor (SPM/IPM)
Mounting Type	DIN rail Panel mount
Output Frequency Range	0-400 Hz
Output Phases	Three-phase
Relay Outputs	2.0000
Series	DM1
User Interface	Multi-segment
