Eaton DM1-32025EB-S20S

Name: Eaton DM1-32025EB-S20S
Brand: Eaton
SKU: CS4851286
Price: 1879.26 USD
Availability: OutOfStock

SKU: CS4851286MPN: DM1-32025EB-S20SAlternate Part #: 3-5005-001AUPC/EAN: 786689351380

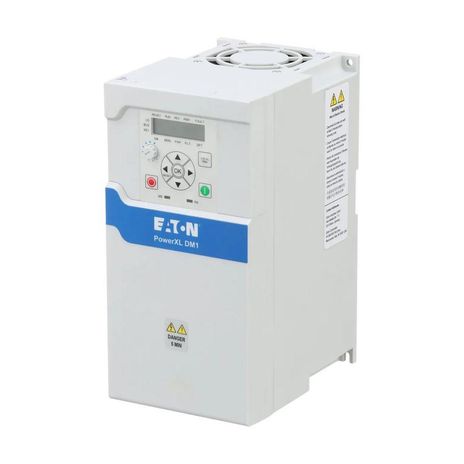

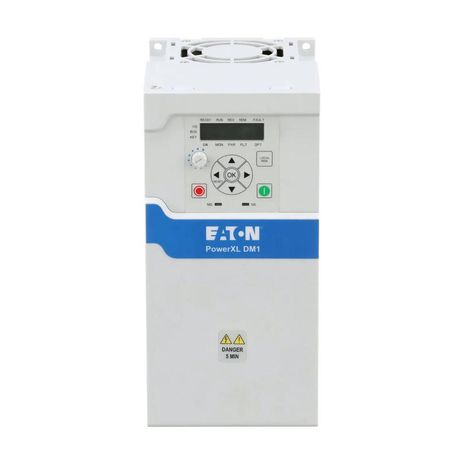

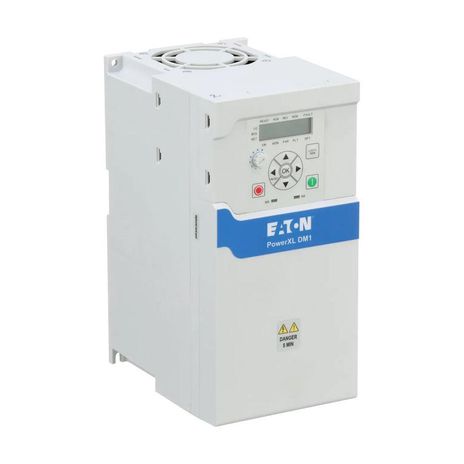

Eaton PowerXL DM1 micro variable frequency drive

Eaton DM1-12017EB-S20S, DM1-12017NB-S20S, DM1-32025EB-S20S, DM1-32025NB-S20S, DM1-34023EB-S20S, DM1-34023NB-S20S, DM1-35013NB-S20S

Product Details

Eaton PowerXL DM1 series micro drive, Three-phase, 230 V, 25 A, Internal EMC filter, Internal brake chopper, Multi segment LCD display, IP20, ST0 SIL2 and ethernet I/P, Modbus TCP onboard

Attributes

Ambient Operating Temperature Range	-10 to 50 °C CT -10 to 40 °C VT
Analog Inputs	1.0000
Brake Chopper	Internal brake chopper
Communications Onboard	Modbus RTU Modbus TCP Ethernet/IP BACnet IP BACnet MS/TP Bluetooth
Communications Optional	CANopen PROFIBUS SmartWireDT
Conformal Coated Boards	Yes
Digital Inputs	4.0000
Digital Outputs	0.0000
Drive Type	General purpose
Electromagnetic Compatibility Filter	Yes
Enclosure Rating	IP00
Frame Size	FR3
Fuse Size Max	70.0000
High Overload Ct Amps	25
High Overload Ct Hp	7
High Overload Ct Kw	5
Input Frequency Range	50-60 Hz
Input Phases	Three-phase
Input Voltage Range	200-240 Vac
Internal Choke	No
Internal Line Reactor	No
Low Overload Vt Amps	32
Low Overload Vt Hp	10
Low Overload Vt Kw	7
Max Overload	200 %
Motor Control Modes	V/Hz Open loop vector control
Motor Type	Induction Induction motor Permanent magnet motor (SPM/IPM)
Mounting Type	Panel mount DIN rail
Output Frequency Range	0-400 Hz
Output Phases	Three-phase
Relay Outputs	2.0000
Series	DM1
User Interface	Multi-segment
