Eaton DILM12-01(24V60HZ)

Name: Eaton DILM12-01(24V60HZ)
Brand: Eaton
SKU: CS4851093
Availability: OutOfStock

SKU: CS4851093MPN: DILM12-01(24V60HZ)UPC/EAN: 04015082768560

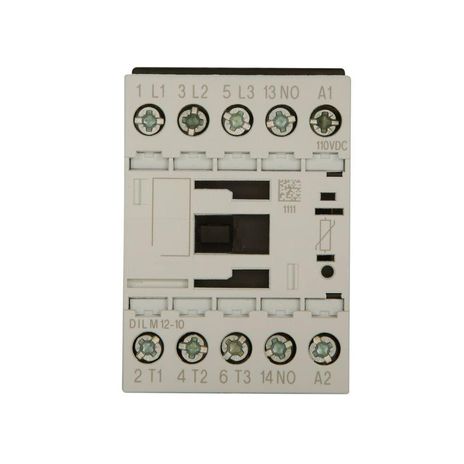

Eaton XT IEC mini contactor

Eaton DILM115(RDC130), DILM115-22(RAC120), DILM115-22(RAC240), DILM12-01(24V60HZ)

Discontinued - Contact Us For Pricing & Availability

Product Details

Eaton XT IEC mini contactor, 12A,24 Vac, 60 Hz, 1NC, 12A, Frame B, 45 mm, 60 Hz, 1, 2/ 3, 3, 10, 10 (⅓PH @120, 240/208, 240, 480, 600 V), 3-pole, , Screw terminals, FVNR, 5.5 kW

Attributes

Amperage Rating	12A
Coil	24 Vac 60 Hz
Coil Voltage	24 Vac, 60 Hz
Contact Configuration	1 NC
Continuous Ampere Rating	12 A
Frame Size	45 mm
Frequency Rating	60 Hz
Hp Rating Max	1, 2/ 3, 3, 10, 10 (⅓PH @120,240/208,240,480,600 V)
Number Of Poles	Three-pole
Operation	Non-reversing
Power Consumption	5.5 kW
Series	XT IEC
Terminals	Screw terminals
Type	Full voltage non-reversing miniature contactor
