Eaton DILM9-10(24V60HZ)

Name: Eaton DILM9-10(24V60HZ)
Brand: Eaton
SKU: CS3614971
Availability: OutOfStock

SKU: CS3614971MPN: DILM9-10(24V60HZ)UPC/EAN: 04015082766818

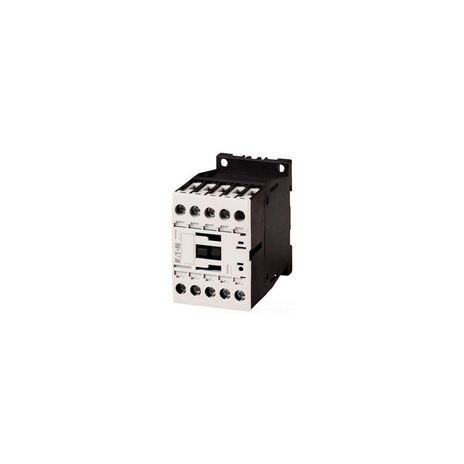

Eaton XT IEC mini contactor

Eaton DILM9-10(110VDC), DILM9-10(24V60HZ), DILM9-10(600V60HZ)

Discontinued - Contact Us For Pricing & Availability

Product Details

Eaton XT IEC mini contactor, 9A,24 Vac, 60 Hz, 1NO, 9A, Frame B, 45 mm, 60 Hz, 0.5, 1.5/ 3, 3, 5, 7.5 (⅓PH @120, 240/208, 240, 480, 575 V), Three-pole, Screw terminals, Full voltage non-reversing miniature contactor, 4 kW

Attributes

Amperage Rating	9A
Coil	24 Vac 60 Hz
Coil Voltage	24 Vac, 60 Hz
Contact Configuration	1 NO
Continuous Ampere Rating	9 A
Frame Size	45 mm
Frequency Rating	60 Hz
Hp Rating Max	0.5, 1.5/ 3, 3, 5, 7.5 (⅓PH @120,240/208,240,480,575 V)
Number Of Poles	Three-pole
Operation	Non-reversing
Power Consumption	4 kW
Series	XT IEC
Terminals	Screw terminals
Type	Full voltage non-reversing miniature contactor
