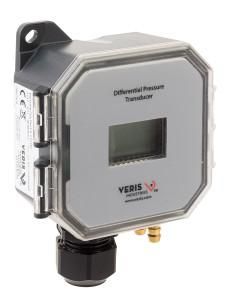

Veris EPP302LCD
SKU: CS4814418MPN: EPP302LCD
EP Series Differential Pressure/Air Velocity Transducer, Panel Mounting, 0-10 in. WC/0-2500Pa, LCD
$257.42
Unit2 Units Available at Factory - Ships Same/Next Business Day
Product Details
EP Series Differential Pressure/Air Velocity Transducer, Panel Mounting, 0-10 in. WC/0-2500Pa, LCD
Attributes
| IP Degree of Protection | IP65 |
| Product or Component Type | sensor |
| Ambient Air Temperature for Operation | -20-60 °C |
| Burst Pressure | 5 psid (34.5 kPa) |
| Product Certifications | CE |
| Controlled Fluid | air; gas |
| Fitting Size | 6 mm (0.24”) |
| Fitting Type | male |
| Location | plant room |
| Mounting Mode | panel |
| Pressure Measurement Range | 0…1” W.C. (0…250 Pa); 0…2.5” W.C. (0…500 Pa); 0…5” W.C. (0…1000 Pa); 0…10” W.C. (0…2500 Pa) |
| Wiring Technique | 3-wire |
| Type of Measurement | differential pressure |
| Device Application | duct pressure monitoring; filter monitoring; fan monitoring; VAV control; air velocity monitoring |
| Mounting Support | panel |
| Standards | EN 61000-6-1; EN 61000-6-3; EN 61326-1; EN 61326-2-1 |
| Probe Length | 188 mm |
| (Us) Rated Supply Voltage | 12…30 V DC; 24 V AC |
| Probe Diameter | 7 mm |
| Display Size | 17 x 28 mm |
| Local Signalling | red/green/blue LED |
| Pressure Measurement Drift | less than 0.5 % |
Specifications
| SKU | CS4814418 |
|---|---|
| MPN | EPP302LCD |
