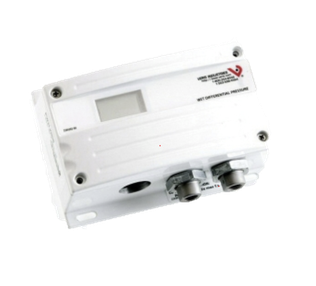

Veris EPU305LCD
SKU: CS4814420MPN: EPU305LCD
Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa
$320.25
Unit1 Unit Available at Factory - Ships Same/Next Business Day
Product Details
Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa
Attributes
| IP Degree of Protection | IP65 |
| Product or Component Type | sensor |
| Ambient Air Temperature for Operation | -20-60 °C |
| Burst Pressure | 5 psid (34.5 kPa) |
| Product Certifications | CE |
| Controlled Fluid | air; gas |
| Fitting Size | 6 mm (0.24”) |
| Fitting Type | male |
| Location | plant room |
| Pressure Measurement Range | 0…0.1” W.C. (0…25 Pa); 0…0.25” W.C. (0…50 Pa); 0…0.5” W.C. (0…100 Pa); 0…1” W.C. (0…250 Pa); 0…2.5” W.C. (0…500 Pa); 0…5” W.C. (0…1000 Pa); 0…10” W.C. (0…2500 Pa) |
| Type of Measurement | differential pressure |
| Device Application | duct pressure monitoring; filter monitoring; fan monitoring; VAV control; air velocity monitoring |
| Mounting Support | duct; panel |
| Standards | EN 61000-6-1; EN 61000-6-3; EN 61326-1; EN 61326-2-3 |
| Probe Length | 188 mm |
| (Us) Rated Supply Voltage | 12…30 V DC; 24 V AC |
| Probe Diameter | 7 mm |
| Display Size | 17 x 28 mm |
| Local Signalling | red/green/blue LED |
| Pressure Measurement Drift | less than 0.5 % |
Specifications
| SKU | CS4814420 |
|---|---|
| MPN | EPU305LCD |
