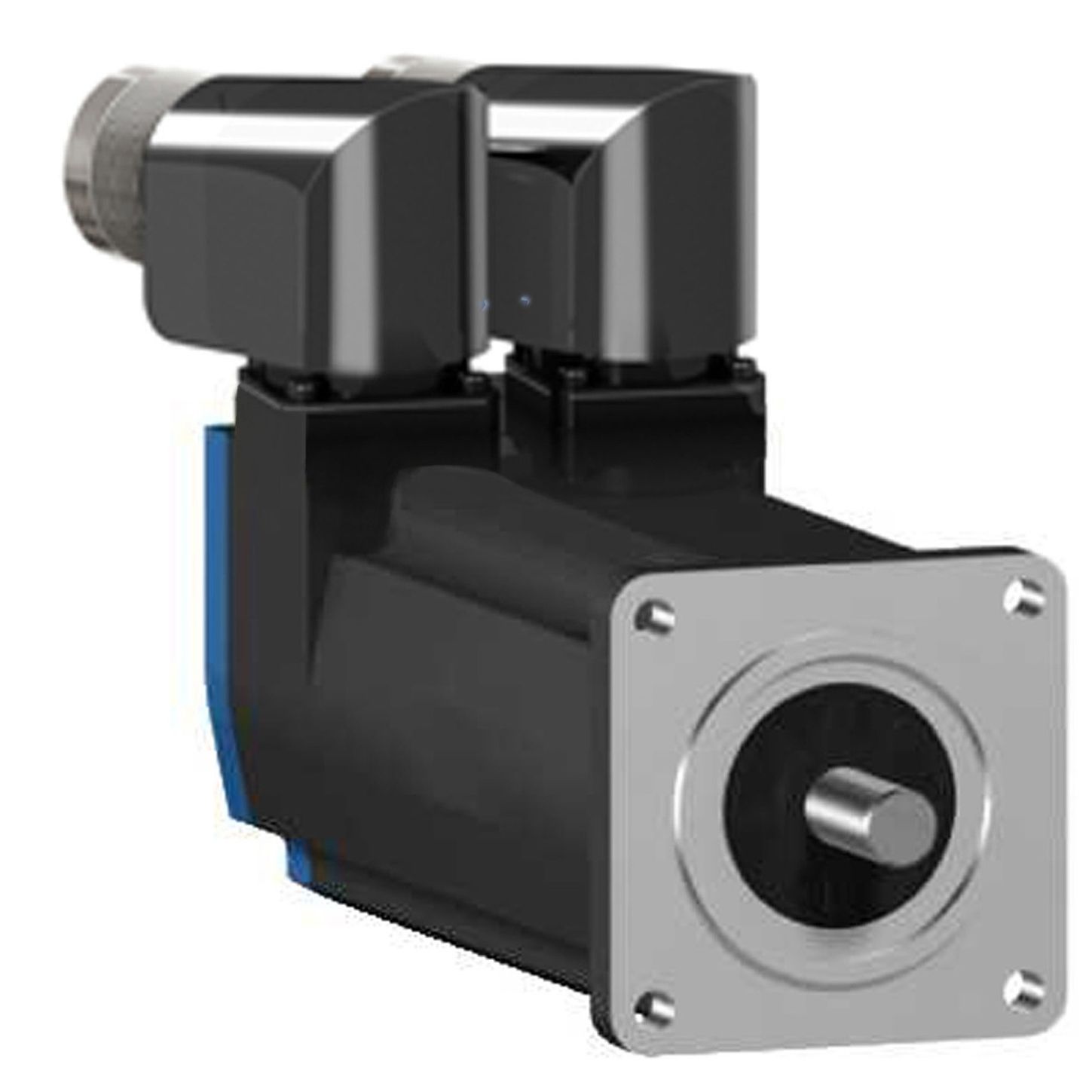

Square D SH30552P12F2000

Name: Square D SH30552P12F2000
Brand: Square D
SKU: CS4813594
Availability: OutOfStock

SKU: CS4813594MPN: SH30552P12F2000

servo motor SH3 055 0,71Nm,key,multi,brake,90°conn.IP54/IP65,9k RPM

Product Details

Servo motor SH3 055 0, 8Nm, key, multi, brake, 90deg conn. IP54/IP65,9k RPM

Us Rated Supply Voltage	115…480 V
Us Rated Supply Voltage 1	115…480 V
Centring Collar Diameter	40 mm
Circle Diameter Of The Mounting Holes	63 mm
Continuous Power	530 W
Continuous Stall Current	1.2 A
Device Short Name	SH3.....P
Electrical Connection	rotatable right angled connector
Encoder Type	absolute multiturn SinCos Hiperface
Holding Brake	with
Maximum Axial Force Fa	40 N
Maximum Mechanical Speed	9000 rpm
Motor Flange Size	55 mm
Mounting Holes Diameter	5.5 mm
Mounting Support	international standard flange
Network Number Of Phases	three phase
Network Number Of Phases 1	three phase
Number Of Motor Poles	3.0000
Number Of Mounting Holes	4.0000
Product Or Component Type	servo motor
Range Compatibility	PacDrive 3
Rotor Inertia	0.117 kg.cm²
Shaft Diameter	9 mm
Shaft End	parallel key
Speed Feedback Resolution	128 periods
Type Of Cooling	natural convection

SKU	CS4813594
MPN	SH30552P12F2000
