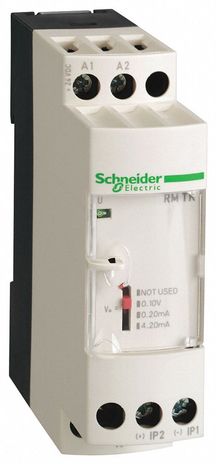

Square D RMTK90BD

Name: Square D RMTK90BD
Brand: Square D
SKU: CS4812693
Availability: OutOfStock

SKU: CS4812693MPN: RMTK90BD

Converter for thermocouples, Harmony Analog, temperature transmitter, 0...1200 degree COr 32...2192 degree F

Product Details

Zelio Analog Temperature transmitter - 0..1200 °C/32..2192 °F - for thermocouples K

Ui Rated Insulation Voltage	2 kV
Ambient Air Temperature For Storage	-40-85 °C
Clamping Connection Capacity	2 x 1.5 mm²# #1 x 2.5 mm²
Disturbance Radiated Conducted	CISPR 11# #CISPR 22 group 1 - class B
Marking	CE
Marking 1	CE
Product Certifications	GL# #UL# #CSA
Product Or Component Type	converter for thermocouples
Protection Type	overvoltage protection on output (± 30 V)# #reverse polarity protection on output# #short-circuit protection on output
Range Of Product	Harmony Analog
Safety Reliability Data	MTTFd = 49.2 years# #B10d = 45447
Standards	IEC 60584-1# #IEC 60947-1
Temperature Coefficient	200 ppm/°C
Tightening Torque	0.6-1.1 N.m
Tightening Torque 1	0.6-1.1 N.m
Tightening Torque 2	0.6-1.1 N.m
