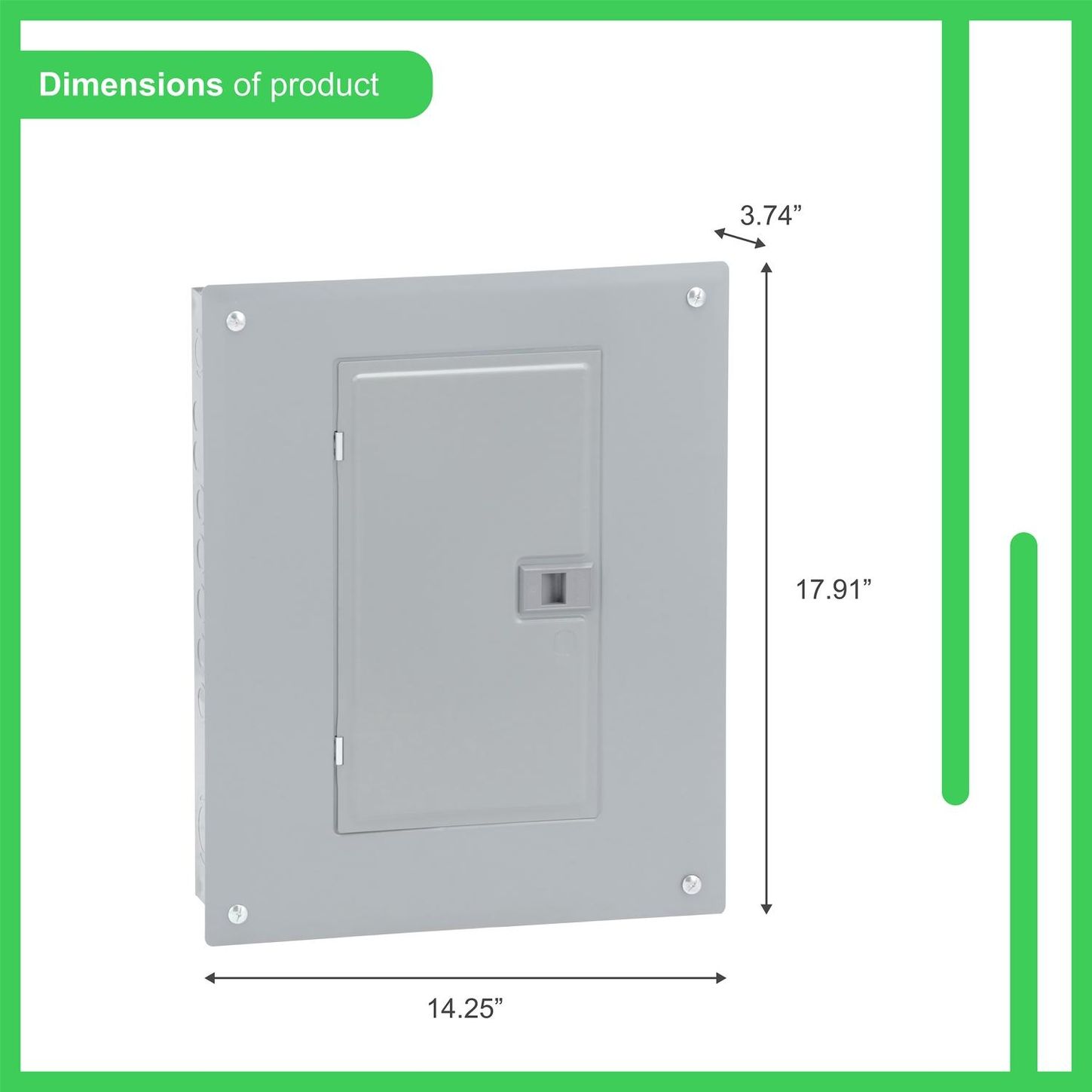

Square D HOM1224L125PGC

Load center, Homeline, 1 phase, 12 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar, combo cover

Load center, Homeline, 1 phase, 12 spaces, 24 circuits, 125A , NEMA1

• Line Rated Current: 125 A
• Product or component type : Load Center
• Marketing Trade Name : Homeline
• Load center type : Main lugs
• Number of spaces : 12
• Number of circuits : 24
• Enclosure Rating : NEMA 1 indoor
• Cover type : Combination flush/surface cover
• Eelectrical connection : Lugs
• Included Options : Grounding bar 1
• Short-circuit current : 10 kA
• Number of Tandem Breakers : 6
• Number of Phases : 1 phase
• Rated operational voltage : 120/240 V AC
• Wire Size : AWG 6...AWG 2/0 aluminium, AWG 6...AWG 1 copper
• Wiring configuration : 3-wire
• Cover finish : Gray baked enamel
• Busbar Material : Tin plated aluminium busbar
• Enclosure material : Welded sheet steel
