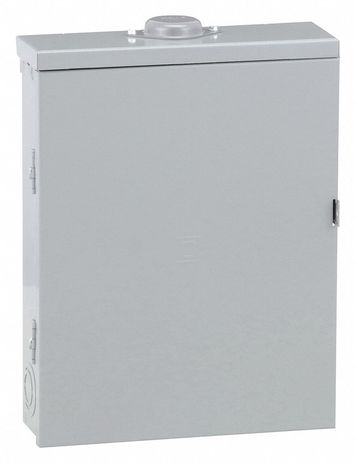

Square D QO312L125GRB

Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA3R, gnd bar, UL

Load center, QO, 3 phase, 12 spaces, 12 circuits, 125A fixed main lugs, NEMA3R, grnd bar, UL

• Marketing Trade Name : QO
• Product : Load Center
• Enclosure type : Weatherproof enclosure
• Cover type : Surface cover
• Tightening torque : Main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper
• Load Center Type : Main lugs
• Line Rated Current : 125 A
• Number of spaces : 12
• Max Short Circuit Current Rating : 65 kA
• Maximum Number of Single Pole Circuits : 12
• Maximum Number of Tandem Breakers : 0
• Number of Phases : 3 phase
• Voltage Rating : 208Y/120 V AC, 240/120 V delta AC, 240 V delta AC
• Wire Size : AWG 6...AWG 2/0 aluminium/copper
• Electrical Connection : Lugs
• Grounding Bar : Grounding bar included (not installed)
• Electrical connection : Lugs
• Wiring configuration : 4-wire, 3-wire
• Busbar Material : Tin plated copper busbar
• Enclosure Material : Welded galvannealed steel
• Cover Finish : Baked enamel Gray
• Box number : 3R
• Height : 18.94 in (481 mm)
• Maximum Width : 14.76 in (375 mm)
• Enclosure Rating : NEMA 3R outdoor
