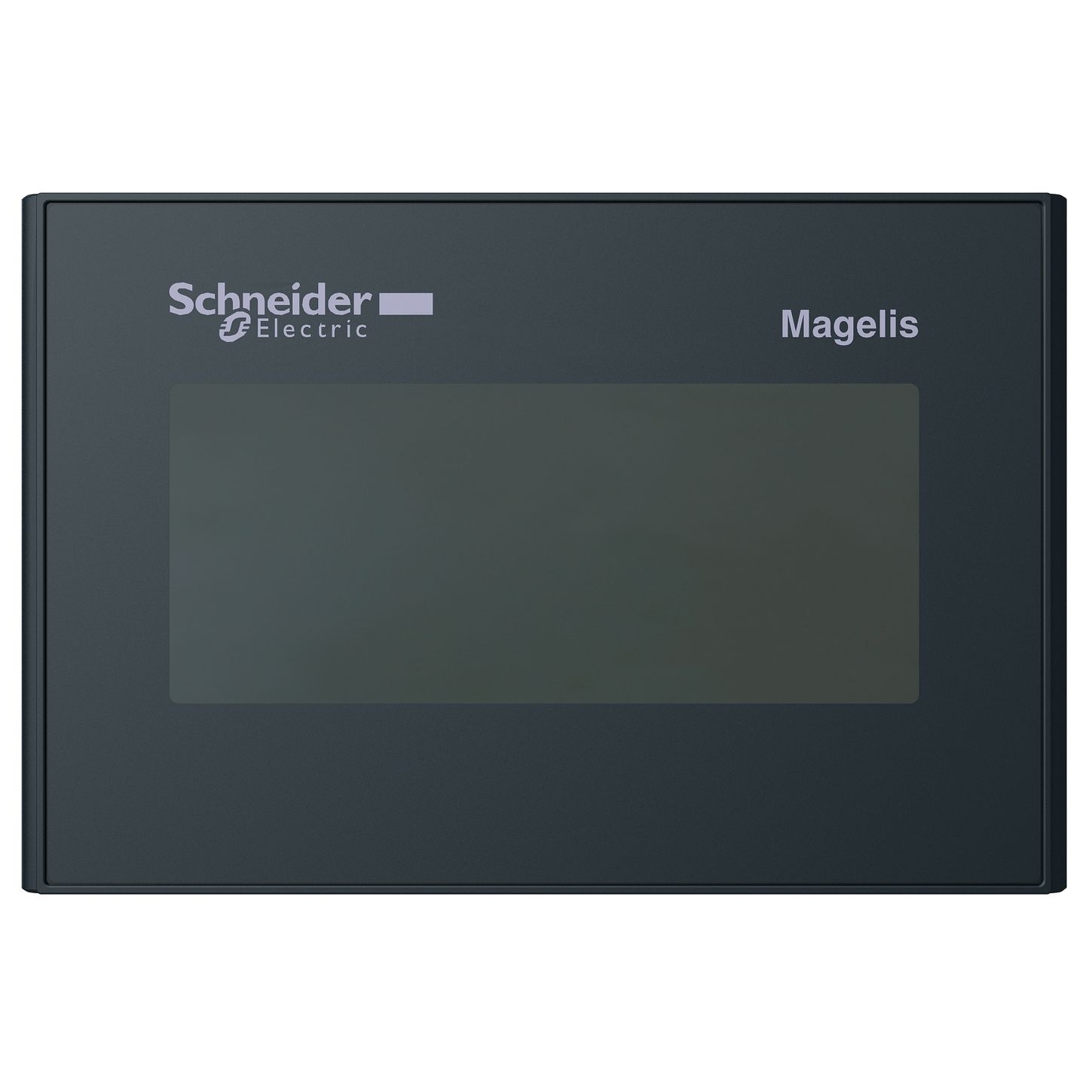

Square D HMISTO512

Name: Square D HMISTO512
Brand: Square D
SKU: CS4811448
Availability: OutOfStock

SKU: CS4811448MPN: HMISTO512

Touch panel screen, Harmony STO \& STU, 3’‘4 Monochrome W/P/R

Product Details

Touch panel screen 3 In 4 Monochrome W/P/R

Ambient Air Temperature For Operation	0-50 °C
Ambient Air Temperature For Operation 1	0-50 °C
Ambient Air Temperature For Storage	-20-60 °C
Background Colour	white, pink and red
Brightness	8 levels
Character Font	Japanese (ANK, Kanji)# #Korean# #ASCII# #Taiwanese (traditional Chinese)# #Chinese (simplified Chinese)
Contrast	16 levels via touch panel
Display Resolution	200 x 80 pixels
Display Size	3.4 inch
Display Type	backlit monochrome STN LCD
Downloadable Protocols	third party protocols# #Uni-TE# #Modbus
Enclosure Material	PPT
Immunity To Microbreaks	3 ms
Inrush Current	30 A
Marking	CE
Number Of Pages	limited by internal memory capacity
Operating Altitude	<= 2000 m
Operating System	Harmony
Power Consumption In W	5 W
Power Consumption In W 1	5 W
Processor Frequency	333 MHz
Processor Name	CPU RISC
Product Certifications	UL Class 1 Division 2 T4A# #UL Class 1 Division 2 T5# #C-Tick# #cULus# #GOST# #CE# #KCC
Product Or Component Type	touch panel screen
Range Of Product	Harmony STO & STU
Software Designation	Vijeo Designer
Standards	FCC Class A# #UL 1604# #UL 508# #IEC 61000-6-2# #EN 61131-2
Supply	external source
Touch Panel	analogue
