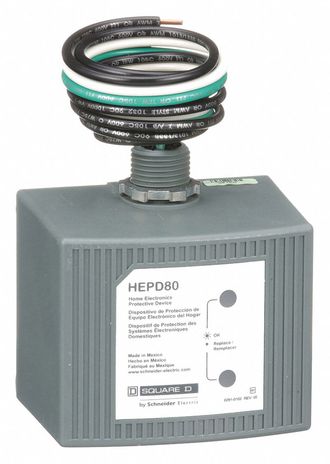

Square D HEPD80

Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1

SPD, HEPD type 1, 120/240 V, 1 PH, 3 wire, 80 kA

• Accessory Category: Mounting accessory
• Surge Current: 80 kA per phase
• Voltage Rating: 120/240 V AC
• Number of Phases: 1 phase
• Wiring Configuration: 3-wire (isolated ground)
• Connection: Wire AWG 14
• MCOV: 150 V
• Nominal Discharge Current: 10 kA
• Rated Current: 10 kA
• SCCR: 25 kA
• Local Signaling: 1 LED green normal operation, 1 LED green off
• Mounting Location: Side
• Mounting Support: Bracket
• product destination: Load center
• input voltage: 600 V L-N, 600 V L – G, 1000 V L – L, 900 V N - G
• Height: 3.23 in (82.04 mm)
• Width: 3.72 in (94.49 mm)
• Depth: 2.10 in (53.34 mm)
• Cable length: 34 in (863.60 mm)
• Enclosure Rating: NEMA 4X
