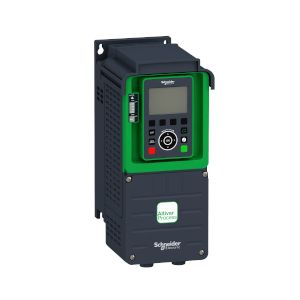

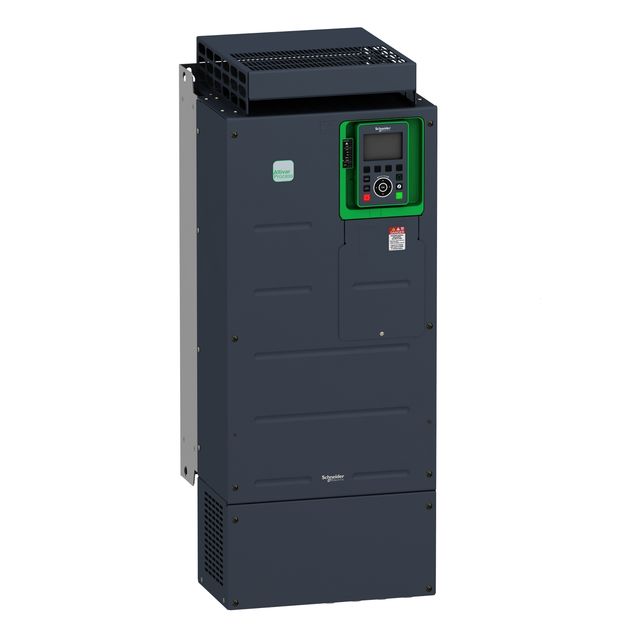

Square D ATV930D22N4

Name: Square D ATV930D22N4
Brand: Square D
SKU: CS4810813
Price: 6454.78 USD
Availability: OutOfStock

SKU: CS4810813MPN: ATV930D22N4

variable speed drive, Altivar Process ATV900, ATV930, 22kW, 400 to 480V, with braking unit, IP21

$6,454.78

Unit

Available on backorder

Quantity

remove

add

Product Details

Altivar 930 Variable Speed Drive:

Motor Power kW: 22 kW (normal duty), 18.5 kW (heavy duty)
Motor Power HP: 30 hp (normal duty), 25 hp (heavy duty)
Rated Supply Voltage: 380...480 V
Network Number of Phases: 3 Phase
Degree of Protection: IP21

Attributes

4 Quadrant Operation Possible	1.0000
Acceleration And Deceleration Ramps	linear adjustable separately from 0.01…9999 s
Ambient Air Temperature For Storage	-40-70 °C
Ambient Air Transport Temperature	-40-70 °C
Analogue Input Number	3.0000
Analogue Output Number	2.0000
Assembly Style	enclosed
Asynchronous Motor Control Profile	variable torque standard# #optimized torque mode# #constant torque standard
Base Load Current At High Overload	39.2 A
Base Load Current At Low Overload	46.3 A
Brake Chopper Integrated	1.0000
Braking To Standstill	by DC injection
Communication Port Protocol	Modbus serial# #EtherNet/IP# #Modbus TCP
Connector Type	2 RJ45# #1 RJ45
Data Format	8 bits, configurable odd, even or no parity
Device Application	industrial application
Discrete Input Logic	16 preset speeds
Discrete Input Number	10.0
Discrete Output Number	2.0000
Emc Filter	integrated# #with EMC plate option
Environmental Class During Operation	class 3C3 according to IEC 60721-3-3# #class 3S3 according to IEC 60721-3-3
Isolation	between power and control terminals
Marking	CE
Maximum Acceleration Under Shock Impact During Operation	150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation	10 m/s² at 13…200 Hz
Maximum Deflection Under Vibratory Load During Operation	1.5 mm at 2…13 Hz
Maximum Output Frequency	599 Hz
Maximum Output Voltage	480.0 V
Motor Slip Compensation	adjustable# #automatic whatever the load# #can be suppressed# #not available in permanent magnet motor law
Mounting Mode	wall mount
Network Frequency	50…60 Hz
Noise Level	59.5 dB
Nominal Switching Frequency	4 kHz
Number Of Addresses	1-247
Operating Position	vertical ± 10 degree
Overvoltage Category	III
Permitted Relative Humidity During Operation	class 3K5 according to EN 60721-3
Physical Interface	Ethernet# #2-wire RS 485
Pollution Degree	2.0
Product Certifications	CSA# #UL# #TÜV
Product Destination	synchronous motors# #asynchronous motors
Product Or Component Type	variable speed drive
Product Specific Application	process for industrial
Prospective Line Isc	50 kA
Quantity Per Set	1
Range Of Product	Altivar Process ATV900
Regulation Loop	adjustable PID regulator
Relative Symmetric Network Frequency Tolerance	0.050000000745058
Relay Output Number	3.0000
Standards	UL 508C# #EN/IEC 61800-3# #EN/IEC 61800-5-1# #IEC 61000-3-12# #IEC 60721-3# #IEC 61508# #IEC 13849-1
Synchronous Motor Control Profile	permanent magnet motor# #synchronous reluctance motor
Transmission Frame	RTU
Transmission Rate	10, 100 Mbits# #4.8 kbps# #9600 bit/s# #19200 bit/s
Type Of Polarization	no impedance
Variant	standard version# #with braking chopper
Volume Of Cooling Air	215 m3/h
With Safety Function Safe Brake Management Sbc Sbt	1.0000
With Safety Function Safe Direction Sdi	0.0000
With Safety Function Safe Operating Stop Sos	0.0000
With Safety Function Safe Position Sp	0.0000
With Safety Function Safe Programmable Logic	0.0000
With Safety Function Safe Speed Monitor Ssm	0.0000
With Safety Function Safe Stop 1 Ss1	1.0000
With Safety Function Safe Torque Off Sto	1.0000
With Safety Function Safely Limited Position Slp	0.0000
With Safety Function Safely Limited Speed Sls	1.0000
With Sft Fct Safe Stop 2 Ss2	0.0000
