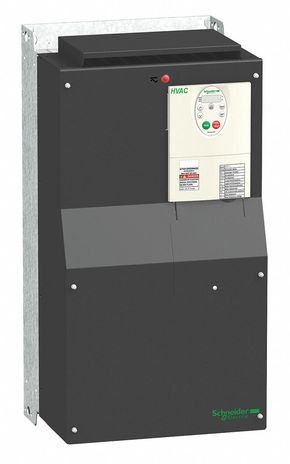

Square D ATV212HD30M3X

Name: Square D ATV212HD30M3X
Brand: Square D
SKU: CS4810650
Price: 5899.38 USD
Availability: OutOfStock

SKU: CS4810650MPN: ATV212HD30M3X

variable speed drive, Altivar 212, 30kW, 40hp, 240V, 3 phases, without EMC, IP21

$5,899.38

Unit

Available on backorder

Quantity

remove

add

Product Details

Altivar 212 VFD

40 HP* Continuous Output Current: 117 amps* AC Line Input Line Voltage: 208/240 VAC Three Phase Input/Output* Enclosure Rating: IP20

The Alitvar 212 drive includes:

3 logic inputs* 2 analog inputs* 1 analog output* 2 relay outputs (with 1 NO and 1 NO/NC contacts)* Integrated 4 digit, 7-segment LED display with a 7 button keypad* RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocols* LonWorks is available in an option card

Attributes

Acceleration And Deceleration Ramps	automatic based on the load# #linear adjustable separately from 0.01 to 3200 s
Air Flow	371 m3/h
Ambient Air Temperature For Storage	-25-70 °C
Analogue Input Number	2.0000
Analogue Output Number	1.0000
Assembly Style	with heat sink
Asynchronous Motor Control Profile	voltage/frequency ratio, 2 points# #voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)# #voltage/frequency ratio - Energy Saving, quadratic U/f# #flux vector control without sensor, standard# #voltage/frequency ratio, 5 points
Braking To Standstill	by DC injection
Communication Port Protocol	METASYS N2# #APOGEE FLN# #BACnet# #LonWorks# #Modbus
Communication Service	write multiple registers (16) 2 words maximum# #monitoring inhibitable# #time out setting from 0.1 to 100 s# #read holding registers (03) 2 words maximum# #read device identification (43)# #write single register (06)
Connector Type	1 RJ45# #1 open style
Data Format	8 bits, 1 stop, odd even or no configurable parity
Device Short Name	ATV212
Discrete Output Number	2.0000
Emc Filter	without EMC filter
Isolation	electrical between power and control
Marking	CE
Motor Slip Compensation	not available in voltage/frequency ratio motor control# #adjustable# #automatic whatever the load
Network Frequency	47.5…63 Hz
Network Number Of Phases	3 phases
Nominal Switching Frequency	8 kHz
Number Of Addresses	1-247
Operating Position	vertical ± 10 degree
Output Voltage	<= power supply voltage
Physical Interface	2-wire RS 485
Power Dissipation In W	1085 W
Product Certifications	NOM 117# #CSA# #C-Tick# #UL
Product Destination	asynchronous motors
Product Or Component Type	variable speed drive
Product Specific Application	pumps and fans in HVAC
Prospective Line Isc	22 kA
Range Of Product	Altivar 212
Regulation Loop	adjustable PI regulator
Specific Application	HVAC
Speed Drive Output Frequency	0.5-200 Hz
Standards	IEC 61800-3 environments 2 category C1# #IEC 61800-3 environments 2 category C2# #IEC 61800-3 environments 1 category C2# #EN 61800-3# #IEC 61800-5-1# #EN 61800-3 environments 1 category C3# #EN 61800-3 environments 1 category C1# #UL Type 1# #EN 61800-3
Supply Voltage Limits	170-264 V
Torque Accuracy	± 15 %
Transmission Frame	RTU
Transmission Rate	9600 bps or 19200 bps
Type Of Polarization	no impedance
