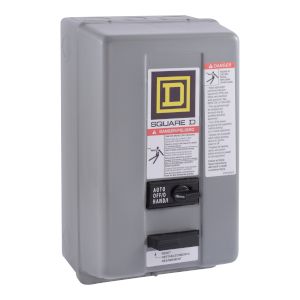

Square D 8536SAG11V02CP1S

Name: Square D 8536SAG11V02CP1S
Brand: Square D
SKU: CS4809712
Availability: OutOfStock

SKU: CS4809712MPN: 8536SAG11V02CP1S

NEMA Motor Starter, Type S, nonreversing, Size 00, 9A, 1 HP at 230 VAC, 5 kA SSCR, 1 phase, 2 pole, melting alloy, 120 VAC coil, NEMA 1

Product Details

Type S Full Voltage Starter

NEMA Size: Size 00* Degree of Protection: NEMA 1 General Purpose* Control Circuit Voltage: 110V AC 50Hz,120V AC 60Hz* Line Rated Current: 9A* Poles Description: 2-Poles* Number of Phases: 1-Phase* Control Circuit: Separate Control Circuit* Control Type: Selector Switch (Hands-Off-Auto)* Red ON Pilot Light in the Enclosure Cover* Motor Starter Type: Non-Reversing* Electrical Connection: Screw Clamp Terminals

In Rated Current	0.375
In Rated Current 1	0.375
Auxiliary Contact Composition	without
Control Circuit	separate control circuit
Electrical Connection	screw clamp terminals
Motor Starter Type	non reversing
Motor Starter Type 1	non reversing
Network Number Of Phases	1 phase
Poles Description	2P
Product Certifications	UL listed# #CSA# #NEMA
Product Or Component Type	motor starter
Range Of Product	S
