Square D 8536SAG11V01S

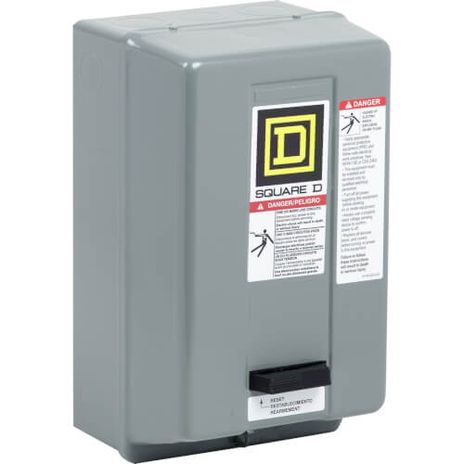

NEMA Motor Starter, Type S, nonreversing, Size 00, 9A, 1 HP at 230 VAC, 5 kA SSCR, 1 phase, 2 pole, melting alloy, 24 VAC coil, NEMA 1

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 2 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has single phase ratings of 0.33 HP at 115 VAC and 1 HP at 230 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 24 VAC 60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

• Type: S
• Line Rated Current: 9 A
• Certifications: CSA, NEMA, UL listed
• Control Circuit Type: Separate control circuit
• Control Units: No control units
• Enclosure Type: NEMA 1 painted sheet steel
• Horsepower Rating: 0.33 HP 115 V AC, 1 HP 230 V AC
• Number of Poles: 2P
• Phase: 1 phase
• System Voltage: 600 V AC
• NEMA Size: 00
• Control Circuit Voltage: 24 V AC 60 Hz
• Starter Type: Non reversing
• Electrical Connection: Screw clamp terminals
• Overload Type: Melting alloy 1
