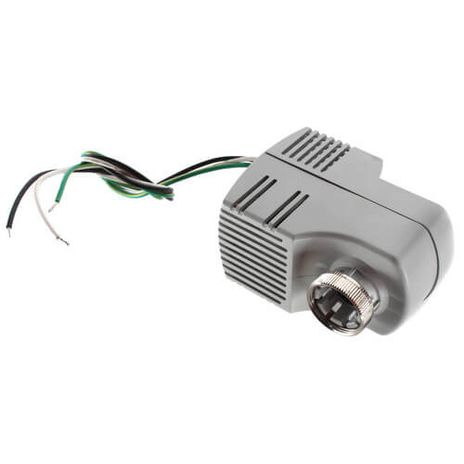

Siemens SFA11U
SKU: CS435158MPN: SFA11UUPC/EAN: 4034106341879
Zone Valve Electronic Actuator, 120 Vac, 2-Position, NC, SR.
$78.28
Unit7 in stock
Product Details
SF Series electronic zone valve actuator, 120 Vac, normally closed, 2-position, spring return. Works with Siemens 599 Series zone valves with 1/10-inch (2.5 mm) stroke. UL listed for plenum installations, manual override.
Attributes
| Actuator Type | Electronic |
| Ambient Humidity Operation | 0% to 90% rh (non-condensing) |
| Ambient Temperature Operation | 1…50 °C |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 2-position |
| Fail Safe | Yes |
| Medium Temperature | 1…110 °C; 34…230 ºF |
| Medium Temperature F Max | 230 ºF |
| Medium Temperature F Min | 34 ºF |
| Operating Voltage | 19.2…28.2 V24 V#AC |
| Positioning Time | 10 s |
| Power Consumption | 9.8 VA |
| Stroke | 2.5 mm |
| Supply Voltage | 120 VAC |
Specifications
| SKU | CS435158 |
|---|---|
| MPN | SFA11U |
| UPC/EAN | 4034106341879 |
