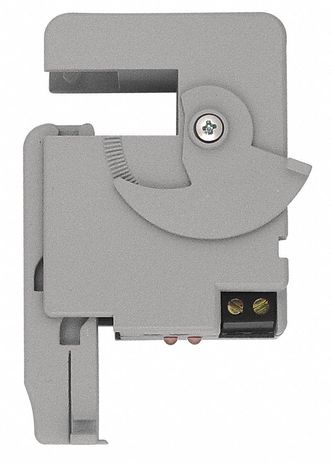

Functional Devices RIBXGTA

Enclosed Split-Core AC Sensor, .75-150Am

Split Core, Adjustable Current Switch, 0.75-150 Amp, Terminal

Specifications:

• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Max Sense Voltage: 600 Vac
• Approvals: UL Listed, UL916, UL864, C-UL, California State Fire Marshal, CE, RoHS
• Mounting/Installation: Removable mounting tab provided. The wire clamp locks against the wire being monitored, securing the unit in place.
• Sensor Contact Status: Current below threshold: Open / Current above threshold: Closed
• Sensor Contact: Solid State Contact, when sensor contact is off (open) leakage \<30 uA @ 30Vac/dc; when sensor contact is on (closed), voltage drop \< .3 Vac/dc @ .1 Amp \< 1.6 Vac/dc @ .4 Amp
• Maximum Switching Current: .4 Amps
• Sensor Contact Termination: Terminal Strip, Accepts #14-22 AWG Wire
• LED 1: Over Trip Point
• LED 2: Under Trip Point
