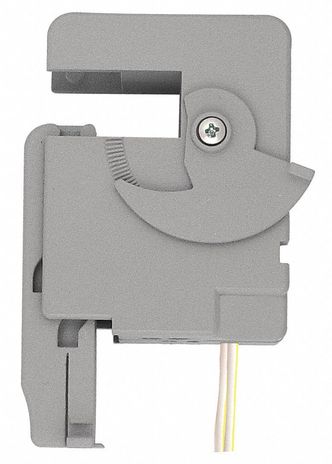

Functional Devices RIBXGF

Enclosed Split-Core AC Sensor, .35-150Am

Specifications:

• Operating Temperature: -30 to 140° F
• Humidity Range: 5 to 95% (noncondensing)
• Max Sense Voltage: 600 Vac
• Approvals: UL Listed, UL916, UL864, C-UL, California State Fire Marshal, CE, RoHS
• Mounting/Installation: Removable mounting tab provided. The wire clamp locks against the wire being monitored, securing the unit in place.
• Sensor Contact Status: Current below threshold: Open / Current above threshold: Closed
• Sensor Contact:
• Solid State Contact: When sensor contact is off (open), leakage \<30 uA @ 30Vac/dc
• When sensor contact is on (closed), voltage drop \< .3 Vac/dc @ .1 Amp \< 1.6 Vac/dc @ .4 Amp
